Lenco 12""x9"" Edge Mount Trim Tab Kit 12v Requires Switch
Lenco 12""x9"" Edge Mount Trim Tab Kit 12v Requires Switch
Regular price
$906.30
Regular price
Sale price
$906.30
Unit price
/
per

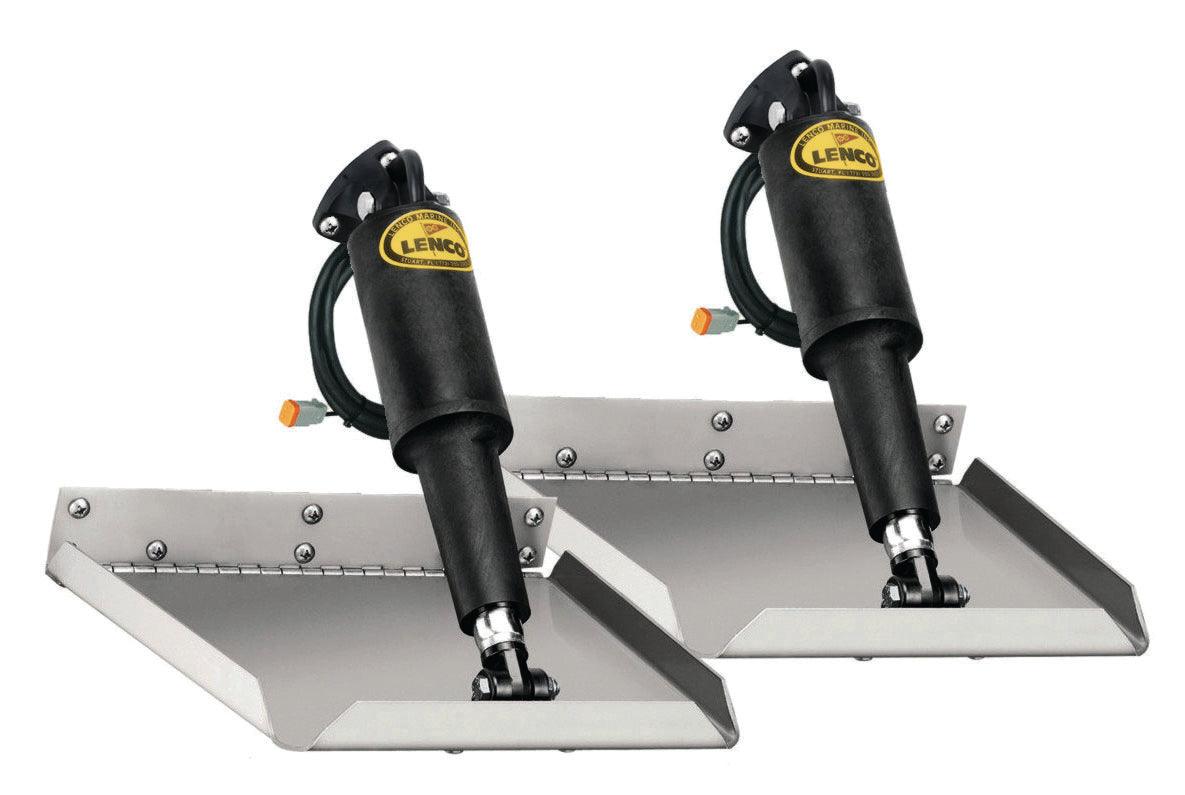

Lenco 12"" X 9"" Edge Mount Trim Tab Kit - Requires Switch
Model: 15015-101Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5"" (34.29 cm) mounting height on 9"" (22.9 cm) long blades & 11"" (27.94 cm) mounting height on 12"" (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14' (4.3 m) to 36' (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1"" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge, & 1/8"" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with a mechanical cable gland seal.
SpecificationsPlane Size L x W | 12"" x 9"" |
Boat length | 14' - 18' |
Hinge Height | 2"" |
Min Transom Height | 13.5"" |
Voltage | 12vDC |
What's in the Box:
- (2) 12-gauge stainless steel standard finish blades
- (2) 15054-001 actuators with 6' (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20โ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco ownerโs/installation manual
- Stainless steel mounting hardware
