JL Audio

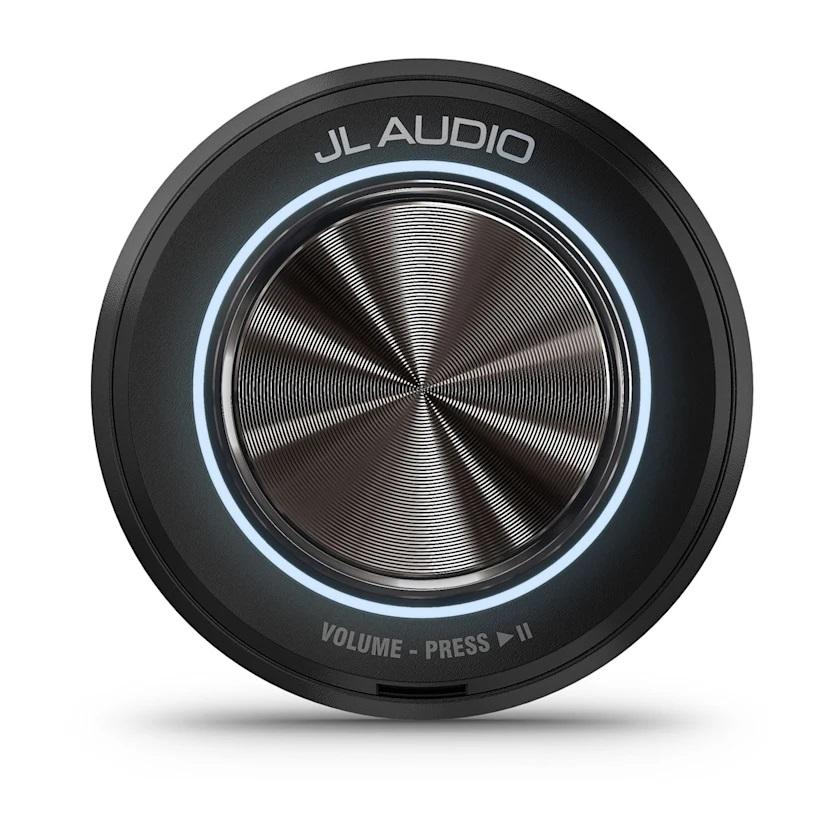

JL Audio R5 Single Stereo Volume Controller
JL Audio R5 Single Stereo Volume Controller
Regular price
$157.99
Regular price
$179.99
Sale price
$157.99
Unit price
/
per
Order and earn 790 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
JL Audio R5 Single Stereo Volume Controller
Model: 010-04790-00
- LARGE SINGLE-KNOB CONTROL
- CONNECTS TO YOUR BOATS NMEA 2000 NETWORK
- ADJUSTS ALL AUDIO ZONES OF A SINGLE HEAD UNIT
- PLAY OR PAUSE WITH THE PUSH OF A BUTTON
- REQUIRES SINGLE 1.5-INCH HOLE FOR INSTALLATION
- IPX7-RATED FOR MARINE ENVIRONMENTS
This easy-to-use volume controller can be front mounted on your boats dash, and it controls all audio zones of a single head unit via a large single knob.
Specifications
| General | |
| Warranty | 1 year |
| Physical dimensions (Height) | 2.35" (60 mm) |
| Physical dimensions (Width) | 2.35" (60 mm) |
| Physical dimensions (Depth) | 2.04" (52 mm) |
| Control surface dust/water rating (when properly installed) | IPX7 |
| Operating temperature range | 32 F to 122 F (0 C to 50 C) |
| Current draw (max) | 110 mA |
| Electrical Features | |
| Power Input | 10.8-16 VDC |
| Compass-safe distance | 3.94" (100 mm) |
| Networking & Connections | |
| NMEA 2000 ports | 1 (Micro-C connector) |
| NMEA 2000 LEN | 2 (100 mA) |
What's in the Box:
- JL Audio R5 single stereo volume controller
- T-connector for the NMEA 2000 network
- Two screws
- Documentation
