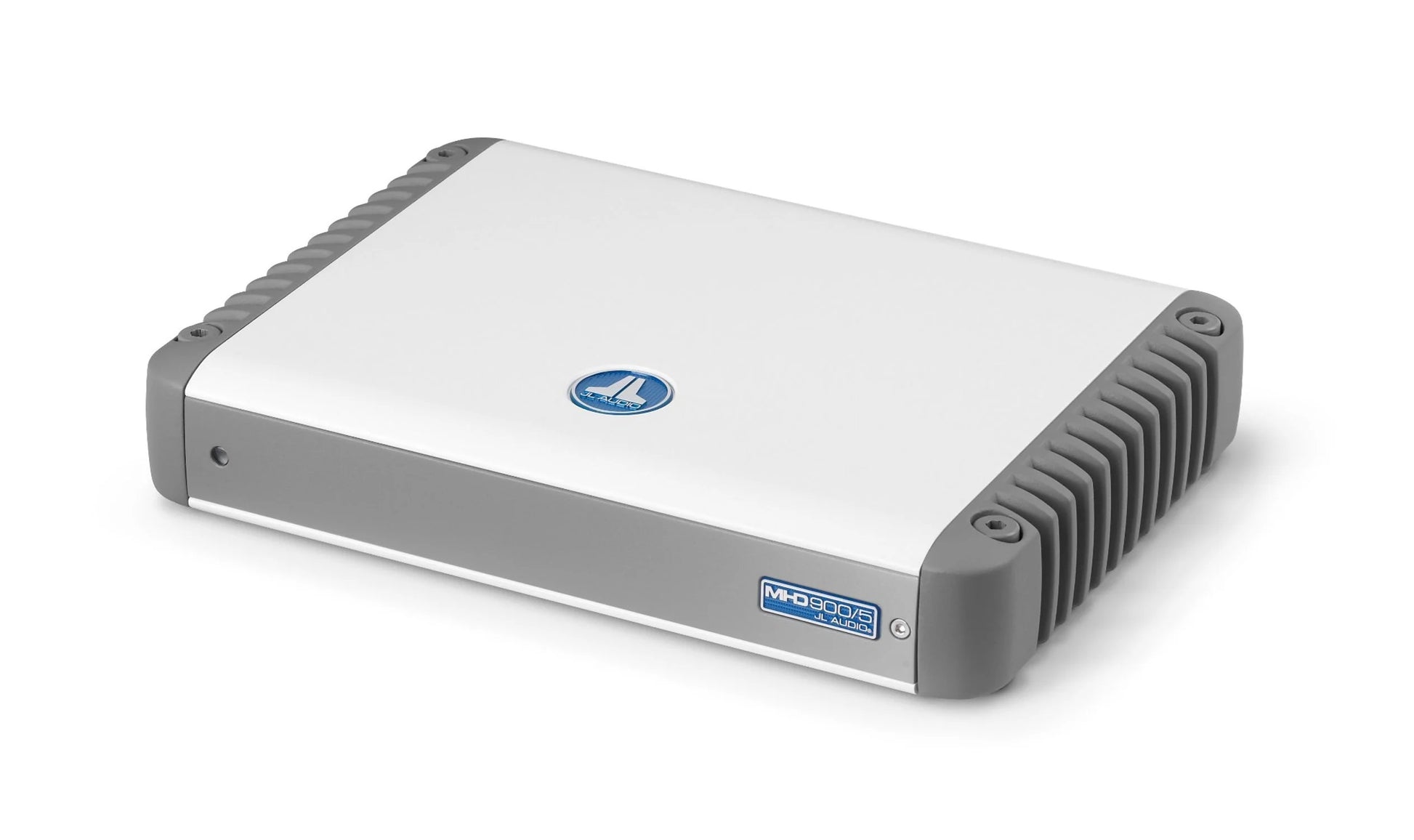

JL Audio MHD Marine Amplifier 5-Channel Full-Range 900 Watts 12v
98226
Model: MHD900/55-Channel Class D Marine System Amplifier, 100 W x 4 + 500 W x 1
Thanks to its ability to act as a ""one-box solution"", the MHD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.
While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!
Using our Single Cycle Control switching design and R.I.P.S technology, the MHD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| Rated Continuous (RMS) Power @ 14.4 V | |
| Main Channels @ 4 ohms | 100 W RMS x 4 |
| Main Channels @ 3 ohms | 75 W RMS x 4 |
| Main Channels @ 2 ohms | 75 W RMS x 4 |
| Main Channels @ 1.5 ohms | 75 W RMS x 4 |
| Main Channels - Bridged @ 8 ohms | 200 W RMS x 2 |
| Main Channels - Bridged @ 4 ohms | 150 W RMS x 2 |
| Subwoofer Channel @ 4 ohms | 500 W RMS x 1 |
| Subwoofer Channel @ 3 ohms | 500 W RMS x 1 |
| Subwoofer Channel @ 2 ohms | 500 W RMS x 1 |
| Subwoofer Channel @ 1.5 ohms | 500 W RMS x 1 |
| Rated Continuous (RMS) Power @ 12.5 V | |
| Main Channels @ 4 ohms | 100 W RMS x 4 |
| Main Channels @ 3 ohms | 75 W RMS x 4 |
| Main Channels @ 2 ohms | 75 W RMS x 4 |
| Main Channels @ 1.5 oms | 75 W RMS x 4 |
| Main Channels - Bridged @ 8 ohms | 200 W RMS x 2 |
| Main Channels - Bridged @ 4 ohms | 150 W RMS x 2 |
| Subwoofer Channel @ 4 ohms | 500 W RMS x 1 |
| Subwoofer Channel @ 3 ohms | 500 W RMS x 1 |
| Subwoofer Channel @ 2 ohms | 500 W RMS x 1 |
| Subwoofer Channel @ 1.5 ohms | 500 W RMS x 1 |
| General Specifications | |
| Frequency Response (Main Channels) | 12 Hz - 28 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 12 Hz - 10 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Main Channels) | >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 ohms | >400 / 50 Hz |
| Damping Factor @ 2 ohms | >200 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <0.03% @ 4 ohms |
| THD+N @ Rated Power (Subwoofer Channel) | <0.05% @ 4 ohms |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | Accepts up to 4 AWG wire |
| Fuse Rating | 60 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12/24 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 500 Hz |
| Filter Mode(s): Channels 3 & 4 (rear) | High-Pass only |
| Filter Slope(s): Channels 3 & 4 (rear) | 12/24 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz - 500 Hz |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12/24 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Infrasonic Filter: Subwoofer Channel | 30 Hz, Defeatable |
| Remote Level Control | Optional (HD-RLC) |
| Remote Level Modes | Sub Ch. Only |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
| Physical Specifications | |
| Height | 1.93 in / 49 mm |
| Width | 10.74 in / 273 mm |
| Depth | 7.85 in / 199 mm |
| Net Weight | 6.85 lb / 3.11 kg |
