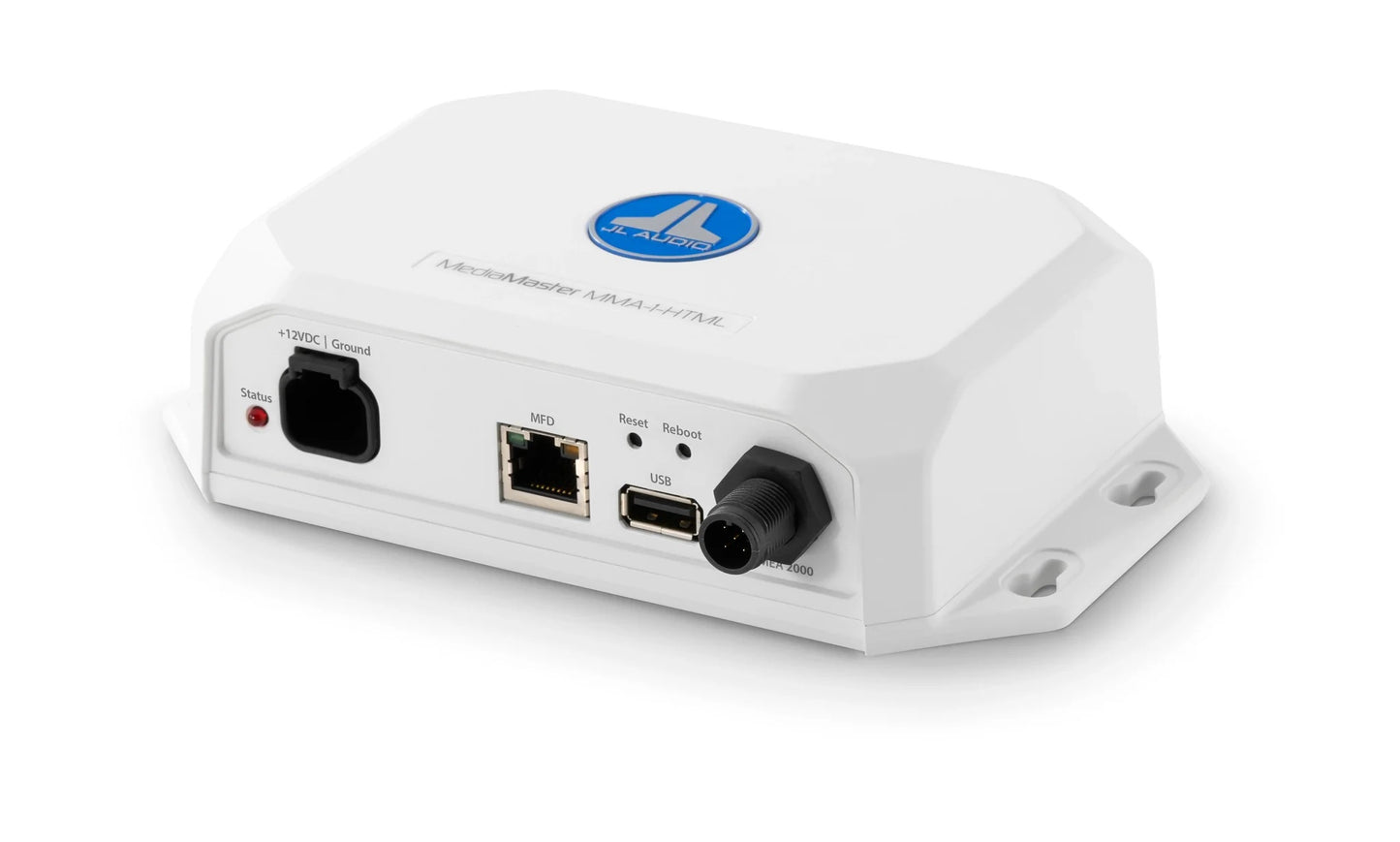

JL Audio MFD Data Interface for MediaMaster

JL Audio MFD Data Interface for MediaMaster

99956

NMEA 2000® Network, MFD Data Interface for MediaMaster® MM105 & MM105-HR

The MMA-1-HTML is a NMEA 2000® certified data interface engineered to generate MediaMaster® themed UI navigation and controls directly onto your vessel's compatible MFD (Multi-Function Display). Exclusively designed for use with compatible MediaMaster® source units, the MMA-1-HTML allows you to pilot your boat and control your MediaMaster® seamlessly, via your helm's MFD display.

Outfitted with a NMEA 2000® Micro-C connector (LEN 1), the MMA-1-HTML interfaces with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included). The MMA-1-HTML automatically recognizes the host MediaMaster® source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster® user experience.

Compatible source unit models: MM105, MM105-HR, MM55, MM55-HR

Note: Functionality of the MMA-1-HTML is derived from the host source unit and connected MFD. The MMA-1-HTML requires connection to a NMEA 2000® network or use of a MMC-PN2K powered network cable (sold separately) to simulate an isolated, stand-alone NMEA 2000® network.

USA Limited Warranty: Two (2) years from the original date of purchase.

Operating Voltage
14.4V DC (10V — 15.9V)

Operating Temp Range
-4 F to +149 F (-20 C to +65 C)

Current Draw / Fuse Value
150 mA (max) / 1 A

NMEA 2000® LEN
1 (Micro-C connector)

Compatible MFDs
Simrad, B&G, Lowrance, Garmin

Dimensions
6.77 in. x 3.98 in. x 1.73 in. (172 mm x 101 mm x 44 mm
