Jl Audio Mediamaster 55 Weatherproof Hidden Source Unit
Jl Audio Mediamaster 55 Weatherproof Hidden Source Unit
Order and earn 1685 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability

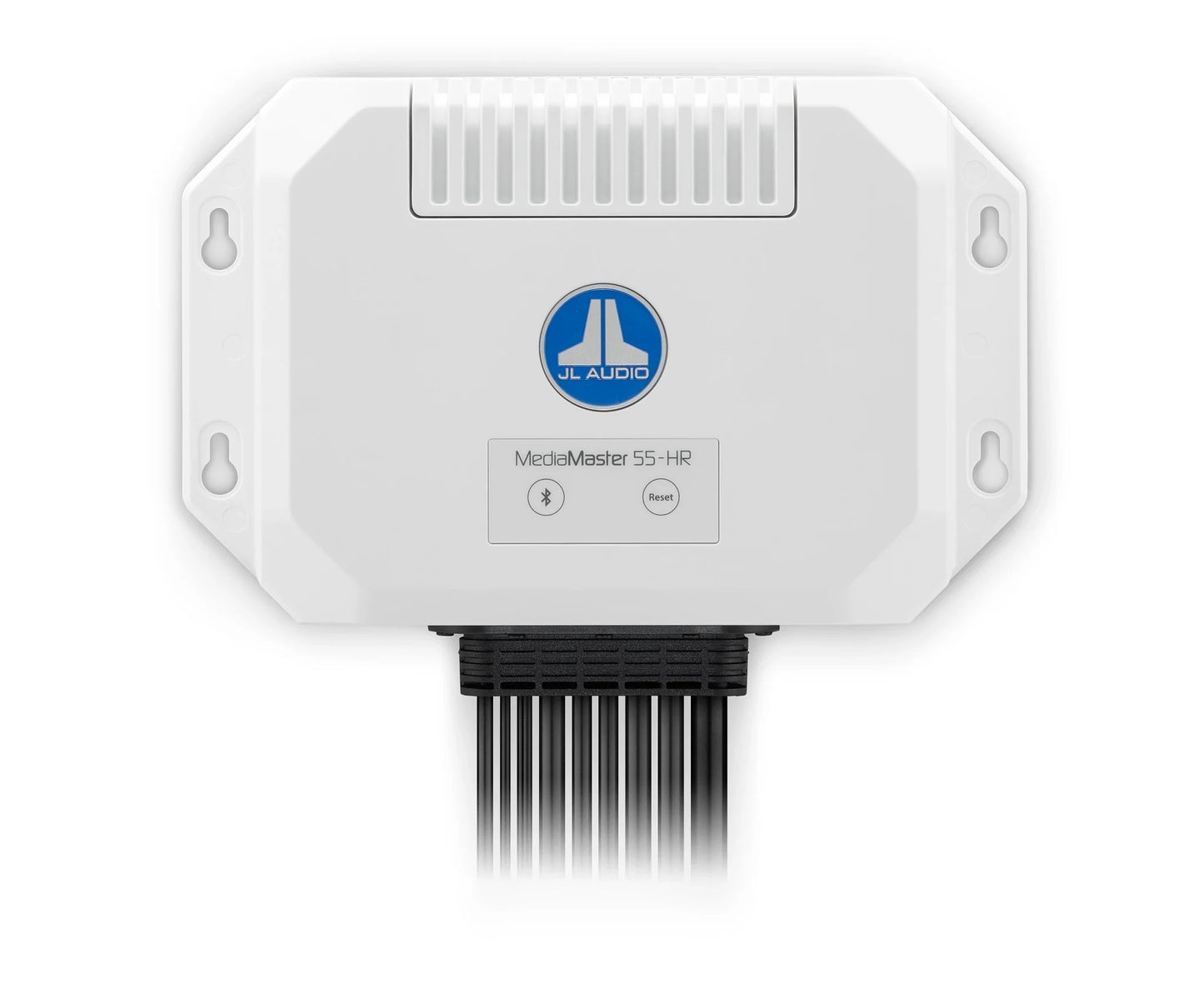

JL Audio MM55-HR Premium, Hidden Marine Source Unit with Built-in Amplifier
Model: MM55-HR- Tough, water-resistant (IP67-rated) design and construction to withstand the elements
- Intuitive interface for easy operation while docked or underway
- Nine channels of audiophile-quality preamp outputs (4-volt RMS) from three separate audio zones, each with a dedicated subwoofer output
- Built-in amplifier generates 100 watts (25 watts x 4) of high-fidelity sound for zones 1 and 2
- Digital AM/FM radio tuner with radio data system extended display info
- Built-in DAB+ radio (Europe) tuner (subject to local availability)
- Store up to 18 favorite stations (across all tuners) for quick selection
- Stream audio with BLUETOOTH wireless technology and the Qualcomm® aptX™ audio codec for amazing audio fidelity with compatible devices
- USB 2.0 direct-digital connections can access music files on your USB storage device with 1 amp charging output
- Auxiliary inputs accept analog audio signals directly from external sources
- NMEA 2000 network-certified: MFD control functionality uses applicable network cables and connectors (sold separately)
Engineered to deliver superb sonic excellence from integrated vessel applications, MediaMaster 55-HR is a premium hideaway receiver with all the features of the MediaMaster 55 source unit, less the physical controls and display screen. Outfitted with certified NMEA 2000® network connectivity, the MediaMaster 55-HR hideaway receiver can be controlled by your Garmin, Lowrance, Raymarine or Simrad multifunction Display (MFD) or a JL Audio MMR-40 network controller (sold separately).
For uninterrupted enjoyment of your favorite stations and soundtracks, a variety of source and media options are on hand, including global radio tuners, a USB input, analog AUX input and streaming audio capabilities, courtesy of BLUETOOTH® wireless technology. Audio output options include a robust 4-channel onboard amplifier, capable of powering your speakers with 100 watts (25-watt RMS x 4) of pure sonic delight. Nine channels of audiophile-quality preamp outputs from three separate audio zones are also included, each with a dedicated subwoofer output. Each zone includes an array of flexible audio options and is controlled by a configurable master volume for quick, on-the-fly adjustments, allowing complete command over different areas of your boat.
Specifications| General Specifications | |
| Input Operating Voltage | 10 - 16 VDC |
| Standby Current Draw | 100 mA |
| Operating Current Draw | 15 A |
| Recommended Fuse Value | 15 A |
| Remote Turn-on Capacity | 500 mA (max) |
| Operating Temperature Range | -4 F to +149 F (-20 C to +65 C) |
| Output Channels | One stereo pair and mono subwoofer RCA plugs per zone |
| Output Zones | Relative, Absolute, Fixed or Off |
| Maximum Output Voltage | 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed) |
| Tuner | |
| FM Tuner with RDS | 87.5 MHz to 107.9 MHz (0.2 MHz step) |
| AM Tuner | 530 kHz to 1710 kHz (10 kHz step) |
| DAB+ Tuner | 170 MHz to 230 MHz |
| Favorites | 18 presets across all tuners |
| Bluetooth® | |
| Profile | A2DP v1.2, AVRCP v1.4 |
| Core Specification | Version 2.1 + EDR |
| Codec | SBC, Qualcomm® aptX™ audio |
| Connection Range | Up to 35' (11 m) |
| USB | |
| Interface | USB 2.0 host |
| Maximum Current Output | 1 A |
| Supported Audio Formats | MP3, MP4, WAV, AAC, M4A, M4B |
| Physical Specifications | |
| Width | 7.68 in / 195 mm |
| Depth | 4.96 in / 126 mm |
| Height | 2.28 in / 58 mm |
What's in the Box:
- MM55-HR Mediamaster
- Powercord
- #8 x 1 in screw x 4
