Jl Audio MM105-HR Premium, Hidden Marine Source Unit
Model: MM105-HR- 12-channels of audiophile quality, 4V RMS preamp level outputs
- NMEA 2000® MFD Control - Use your compatible Multi-Function Display from Garmin, Simrad, Lowrance or Raymarine (refer to MFD manufacturer for compatibility info)
- MMR-40 NMEA 2000® Network Controller (sold separately) - Full-function, water-resistant (IP66 rated) controller with full-color LCD display
- Four separate audio zones, each with independent feature/control options:
- Available Digital HD Radio™ (North America) and DAB+ Radio (Europe) tuners for the best in broadcast sound quality and selection
- Global AM/FM radio tuner with RDS (Radio Data System), to display extended FM program info, where available
- SiriusXM-Ready™ (tuner, antenna and subscription sold separately)
- SiriusXM-Ready™ (tuner, antenna and subscription sold separately)
- Bluetooth® audio streaming with Qualcomm® aptX™ for maximum audio fidelity with compatible devices
- USB1 and USB2 direct-digital connections access music files on your compatible iPhone® or USB storage device; includes 1A and 500mA charging outputs
- AUX1 and AUX2 inputs accepts analog audio signals from a variety of audio sources
- Certified NMEA 2000® Connectivity - MFD (Multi-Function Display) vessel control functionality using applicable network cables and connectors (sold separately).
Engineered to operate behind the scenes as a hideaway receiver, the MediaMaster® 105-HR includes all features of the MM105, minus the LCD display and physical controls. This full-featured, concealed source unit delivers top-flight sound performance and advanced audio features specifically designed for marine applications. Outfitted with NMEA-2000® connectivity, the MM105-HR can be controlled by your Garmin, Lowrance, Raymarine or Simrad Multi-Function Display (MFD) or MMR-40 NMEA 2000® Network Controller (sold separately).
Because sound quality is our top priority, the MM105-HR is not equipped with an internal amplifier designed to drive loudspeakers directly. Instead, it offers twelve channels of audiophile-quality, preamp level outputs to deliver crystal-clear signals to high-quality marine amplifiers. These are deployed via four configurable, nameable audio zones, each with its own set of independent control options, making the MM105-HR adaptable to a wide range of system types. On-the-fly, level controls make adjusting each or all audio zones a breeze, while a useful volume limit feature ensures that nobody gets blasted inadvertently. All zones feature our Zero-Clipping audio circuit design, with self-limiting tone controls to keep the audio clean at high listening levels, reducing the likelihood of speaker damage.
SpecificationsGeneral Specifications | |
Input Operating Voltage | 10 - 15.9 VDC |
Standby Current Draw | 120 mA |
Operating Current Draw | 1.5 A |
Recommended Fuse Value | 5 A |
Remote Turn-on Capacity | 500 mA (max) |
Operating Temperature Range | -4 F to +158 F (-20 C to +70 C) |
Output Channels | One stereo pair and mono subwoofer RCA plugs per zone |
Output Zones | Relative, Absolute, Fixed or Off |
Maximum Output Voltage | 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed) |
Tuner | |
FM Tuner with RDS | 87.5 MHz to 107.9 MHz (0.2 MHz step) |
AM Tuner | 530 kHz to 1710 kHz (10 kHz step) |
DAB+ Tuner | 170 MHz to 230 MHz |
Favorites | 24 presets across all tuners |
Bluetooth® | |
Profile | A2DP v1.2, AVRCP v1.4 |
Core Specification | Version 2.1 + EDR |
Codec | SBC, Qualcomm® aptX™ audio |
Connection Range | Up to 35 ft / 11 m |
USB | |
Interface | USB 2.0 host |
Maximum Current Output | USB1: 1 A / USB2: 500 mA |
Supported Audio Formats | MP3, MP4, WAV, AAC, M4A, M4B |
Apple Compatibility | iPhone 5 or beyond (functionality contingent upon compatible iOS release) |
What's in the Box:

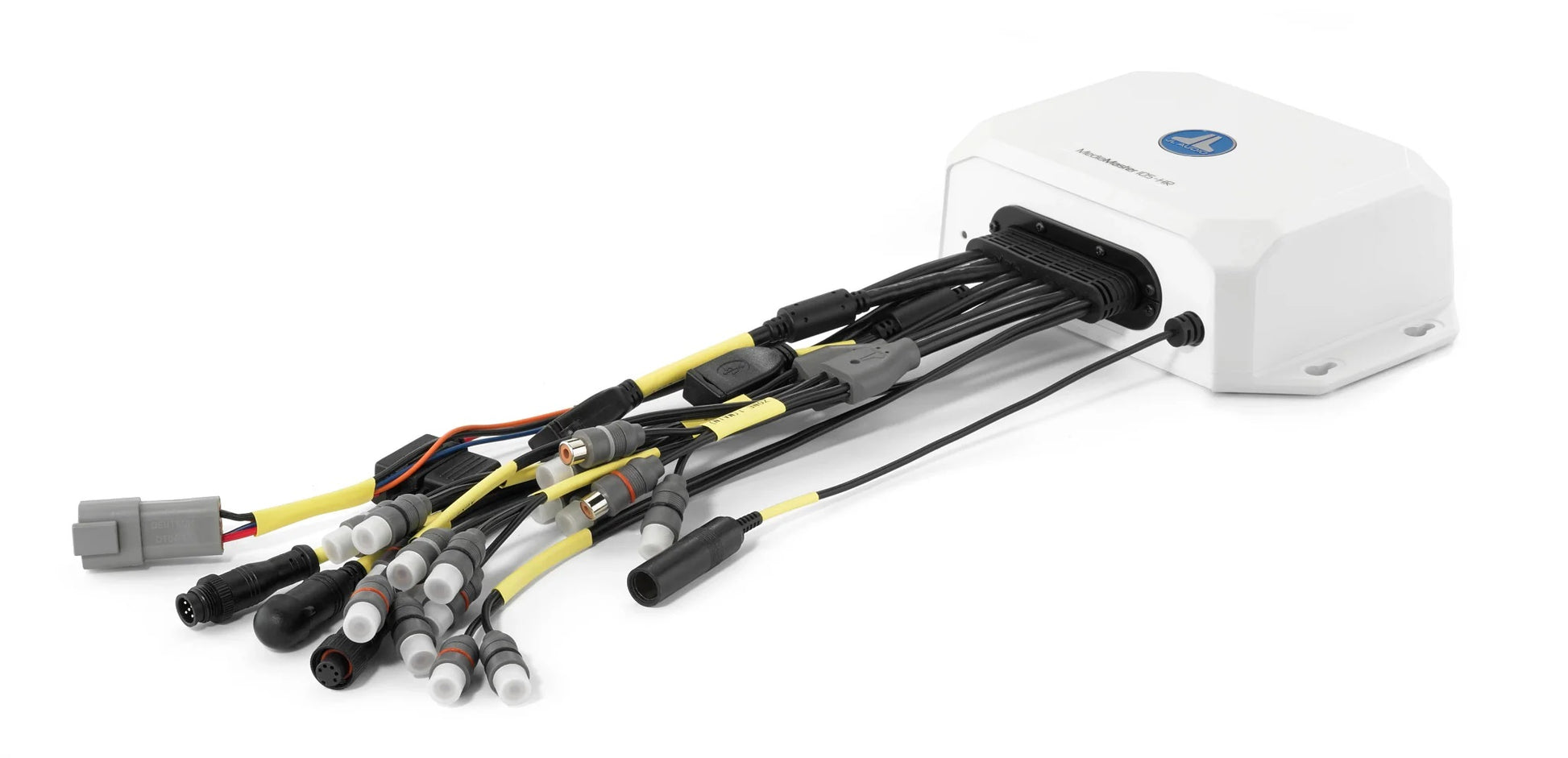

- MM105-HR Black Box
- Powercord
- #8 x 1 in screw x 4
