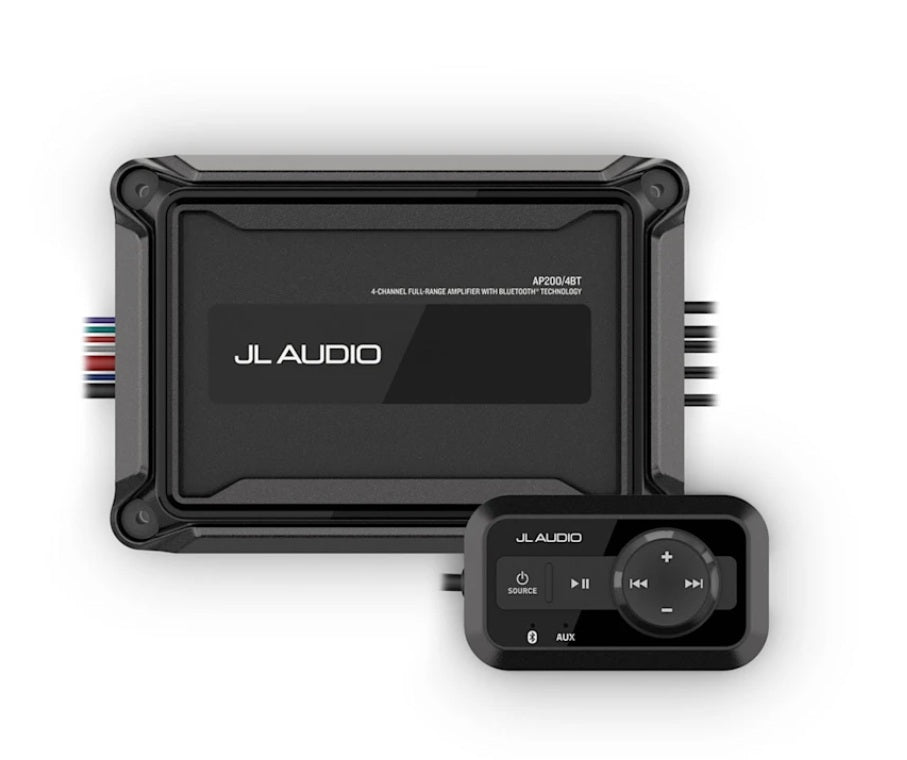

JL Audio AP200/BT Amplifier with Bluetooth and Remote

JL Audio AP200/BT Amplifier with Bluetooth and Remote

• CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.


• STREAM ON THE GO: This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.


• RUGGED DESIGN: The included remote is IPX7-rated and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

POWER THE MOMENT: With this tough and ultracompact 4 channel amplifier featuring Bluetooth® technology, you can enjoy every note from every part of your boat.

Channels
4 Channel

Physical dimensions (Height)
1.85" (47 mm)

Physical dimensions (Width)
7.28" (185 mm)

Physical dimensions (Depth)
4.90" (125 mm)

Operating voltage
9-16 VDC

Water and dust rating
IP67

Operating temperature range
4° to 149° F (-20° to 65° C)

Warranty
3 years

Audio

Amplifier class
Class D

Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD)
40 W x 4/100 W x 2 (Bridged)

Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD)
50 W x 4

Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs
Greater than 70 dB

Frequency response (+0, -1dB)
20 Hz-20 kHz

Input voltage range @ RCA inputs
Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)

Current consumption (Standby)
Less than 1mA

Current consumption (Idle)
Less than 700-750mA

Fuse rating
35A

Recommended fuse type(s)
AFS, AGU or MaxiFuse

Min. copper power/Ground wire gauge
4 AWG wire

Protection circuits
Input under/over voltage Over temperature Output short circuit

What's in the Box:

• 4 channel amplifier with BLUETOOTH technology


• Remote controller


• Surface mounting cup with four mounting screws


• Four amplifier mounting screws


• Flush mounting kits


• Flush mounting template for the remote controller


• Waterproof gasket for the remote controller


• Documentation
