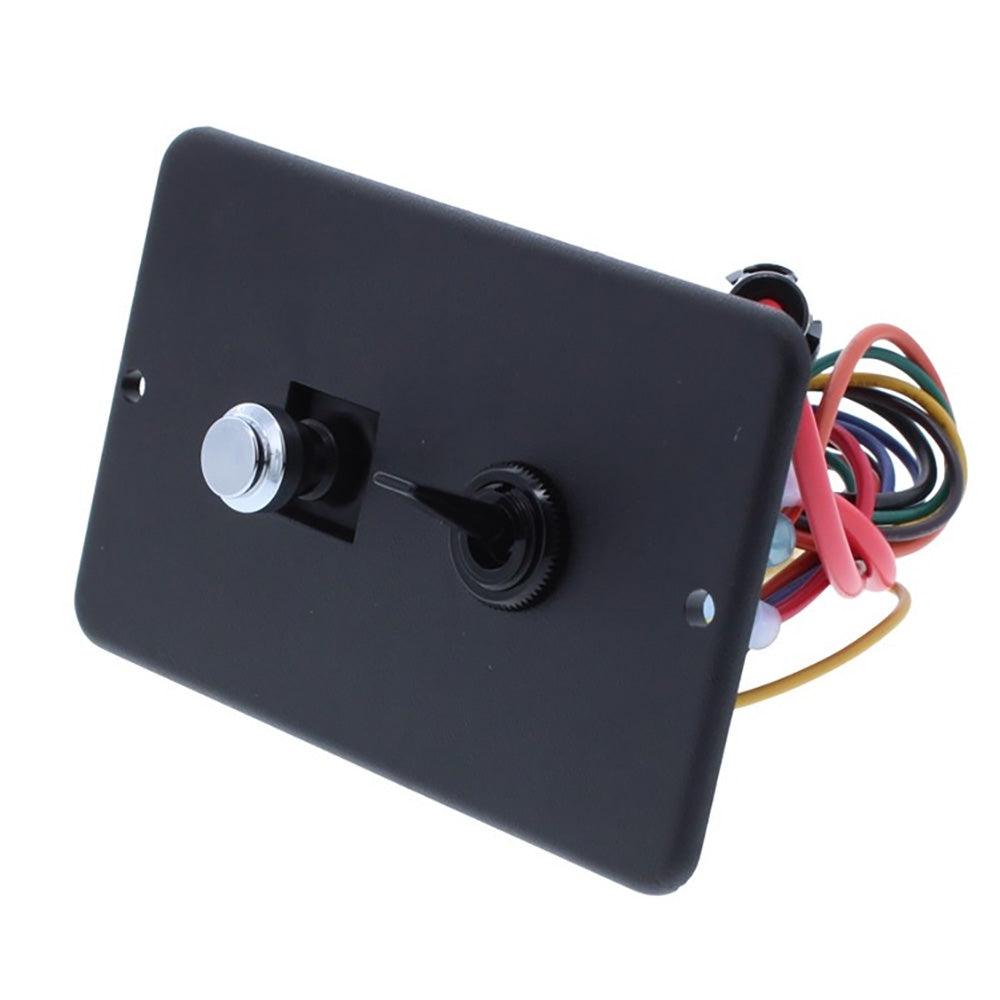

Jabsco Replacement Searchlight Controller 12/24V f/Searchlights 135SL & 155SL

Replacement Searchlight Controller 12/24V for Searchlights 135SL & 155SL

Switch Functions:

1. Light Switch – On/Off switch positions.
2. Directional Switch – Lever has eight contact positions and will operate horizontally, vertically, and in four intermediate directions.

Control Installation (600030-0000):

Select a location near the helm that will allow for the convenient operation of the control

1. Cut two holes (see Panel Cutout Template enclosed) for mounting control
2. Route power leads (supplied by the customer) from the voltage source to control. Note: Wiring must be 16 gauge (minimum)
3. Connect positive (+) power lead to red (+) wire and negative (-) power lead to black wire using butt connectors
4. Connect wires (matching colors) from the control panel to the end of the light cable using the butt connectors provided
5. Use bedding compound or sealant to waterproof control mounting
6. Secure control with self-tapping screws provided
