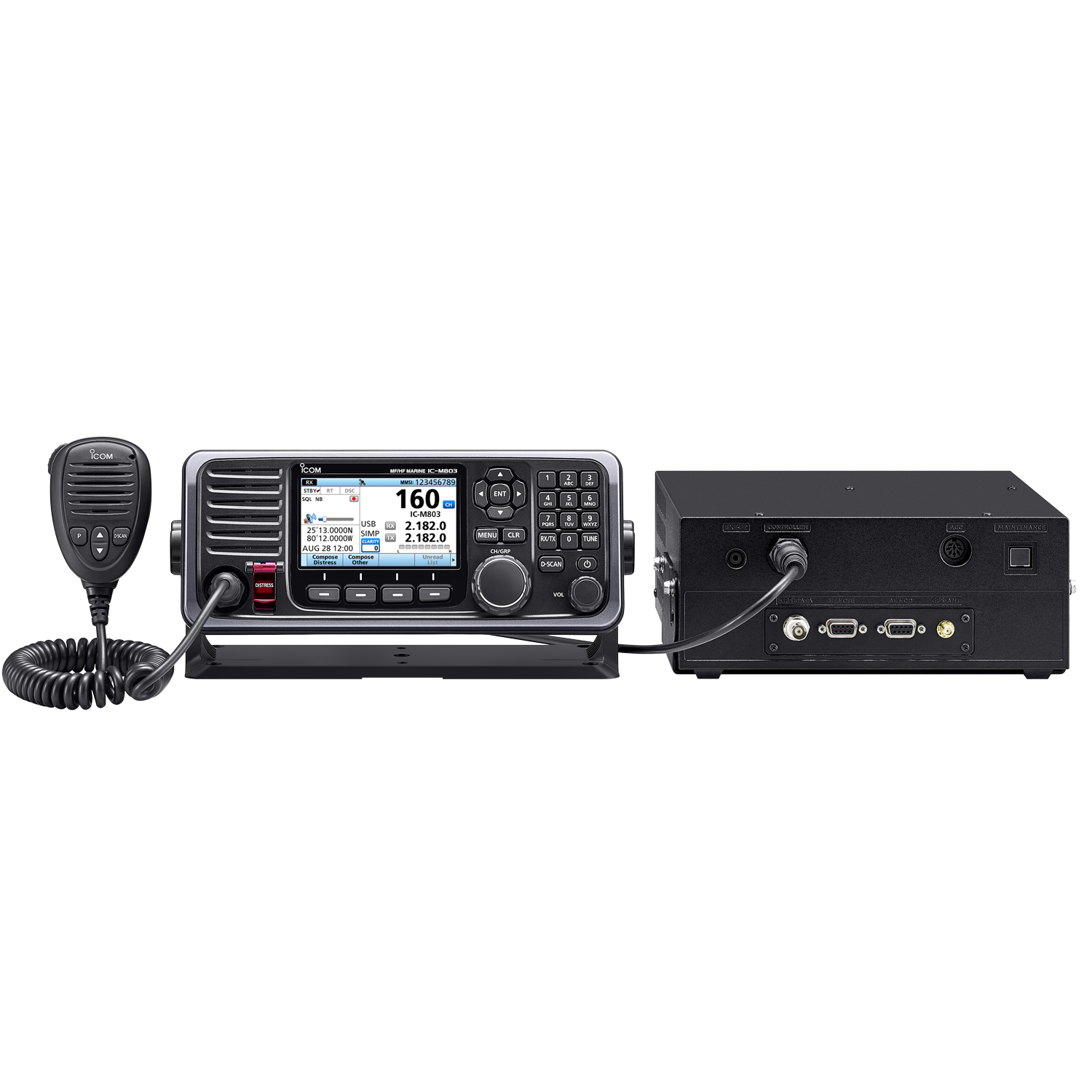

Icom M803 SSB

Icom M803 Marine Single Side Band Transceiver

Model: M803 21 USA

• 150 W (PEP) of powerful RF output
• IPX7 waterproof remote controller
• 0.529.999 MHz continuous receiver coverage
• NMEA 0183 Version 4.10 data input/output (480038400 bps)

The M803 is the long-range digital communication radio for any cruiser. Reach both marine and ham frequencies with the Class E DSC MF/HF certification. Its packed with features to keep users safe, such as a distress call button, audio replay, GPS, and more. The intuitive interface of the color TFT display and the similarity of the user interface of the M605 allows for easy operation between the two radios. The M803 also includes an advanced RF direct simple-sampling system that improves higher receiver sensitivity and higher quality audio.

If in an emergency situation, press the large independent Distress button to send an automated digital Distress signal. The digital distress signal with GPS coordinates calls for help from other ships or coast stations.

The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. A total of 100 MMSI numbers (75 Individual and 25 Group) for DSC calls can be stored with a 10-character ID name. When you receive a DSC call, while you are in process with another DSC call, the IC-M803 can hold both DSC procedures to switch between the DSC calls with the Multiple Task Mode function.

A combination of the large main dial and software keys at the bottom of the display, provides simple operation and easy access to often used functions. You can smoothly enter channel numbers, MMSI numbers, vessel names with the alpha-numeric keypad. In addition, one of software key functions can be assigned to the microphones programmable button for quick access.

The 4.3 inch color TFT display provides an almost 180 degree very wide viewing angle and displays high resolution characters and function icons. You can clearly see the display information from various viewing angles. So the radio can be installed without choosing the installation place. The night mode display ensures good readability in low light conditions.

The GPS receiver which includes GPS, GLONASS and SBAS function, is integrated into the IC-M803. Your position data, course, speed and UTC data can be received with a simple connection to the supplied GPS antenna. The position data can be output from the NMEA 0183 port for use with other devices.

The Instant Replay function automatically saves the received audio. You can replay the received audio, and not miss any incoming calls.

The latest digital signal processing system is employed to the IC-M803. The system totally improves receiver sensitivity, and audio clarity over conventional radio systems.

The IC-M803 can be set to memorize your HF e-mail access frequency, mode and bandwidth setting into the e-mail channels. Up to 160 e-mail frequency channels, and connection terminals for a PC and e-mail modem are available.

The IC-M803 is designed to be a companion to our VHF transceiver IC-M605. The front panel layout, color TFT display and user interface are similar to each other. Take advantages of the shared functionality to complete your communications needs.

Specifications

What's in the Box:

• Remote controller
• Remote control cable (5 m, 16.4 ft)
• Microphone, HM-214H
• DC power cable
• GPS antenna (5 m, 16.4 ft cable)
• Microphone hanger
• Mounting bracket kits
• ACC plugs
• Spare fuses
