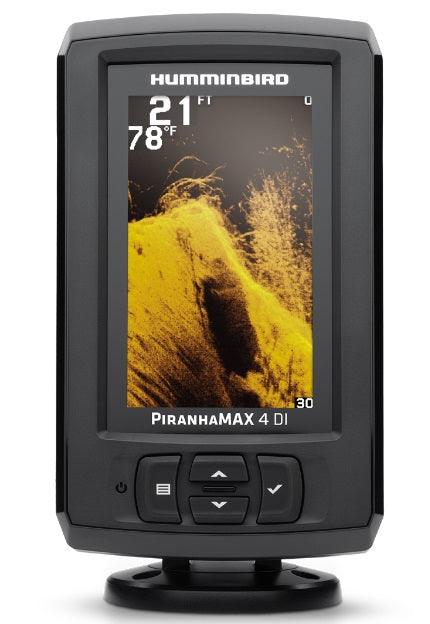

Humminbird Piranhamax 4DI
Model: 410160-1UPC: 082324048739
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
The PiranhaMAX 4 DI features a 256 color 480V X 272H, 4.3"" display with 2400 watts PTP power output with Down Imaging sonar.
Specifications| Display Size | 4.3 in |
| Display pixel matrix | 480 x 272 |
| Display type | Color TFT |
| Display colors grayscale | 256 Colors |
| Standard sonar | Down Imaging/Dual Beam |
| Standard sonar coverage | 28°, 16° & 75° @ -10db |
| Standard sonar frequency | 200/455/455 kHz |
| Target separation | 2.5 in |
| Power output RMS | 300 watts |
| Power output peak to peak | 2400 watts |
| Depth capability | 600 ft |
| Temperature | Built-in transducer |
| Speed | No |
| Backlight | Yes |
| Input Voltage | 10.8-20 VDC |
| Input Draw | 180 mA |
| Dimensions | Gimbal Mount:3.914""W x 7.335""H x 3.621""D In Dash Unit Size2:3.914""W x 6.770""H x 2.600""D |
What's in the Box:
- Piranhamax 4DI
- XNT 9 DI T
- Bracket
- Powercord
- Documentation
