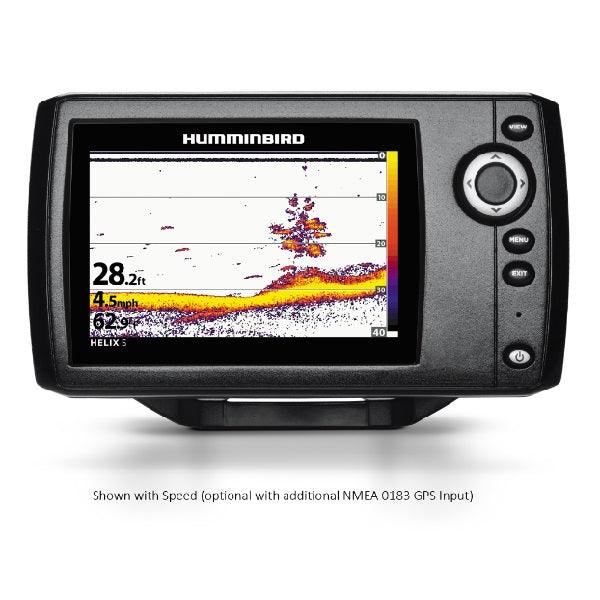

Humminbird Helix 5 Sonar G2

Model: 410190-1
UPC: 082324048999
  • SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
  • DualBeam Plus Sonar - Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
  • Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section

The HELIX 5 Sonar G2 with our new user interface and operating system, features a brilliant 800H x 480V, 5"" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.

Specifications
Display size 5 in
Display resolution 800 x 480
Display type Color TFT
Display colors greayscale 16-bit
Standard sonar DualBeam PLUS
Standard sonar coverage 20° & 60° @ -10db
Standard sonar frequency 200/83 kHz
Target separation 2.5 in
Power output RMS 500 watts
Power output Peak to Peak 4000 watts
Temperature Built-in transducer
Speed Optional
Backlight LED
Switchfire sonar Yes
Split screen zoom Yes
Split screen bottom lock Yes
Large digits view Yes
Selective FishID yes
Card reader No
Input Voltage 10.8-20 VDC
Input Draw 650 mA
Dimensions Gimbal Mount:7.55""W x 4.64""H x 3.3""D
Gimbal Mount:7.55""W x 4.64""H x 3.3""D

What's in the Box:
  • Helix 5 Sonar G2
  • Bracket
  • Powercord
  • XNT 9 20 T transom mount transducer
  • Documentation
