Humminbird Helix5 Di 5"" Wvga Color Fishfinder G2

Humminbird Helix5 Di 5"" Wvga Color Fishfinder G2

$269.99
$269.99
Sale Sold out
FREE SHIPPING TO THE LOWER 48 STATES
Great news! This product is eligible for our price matching program and discount promos. Click here to learn more.

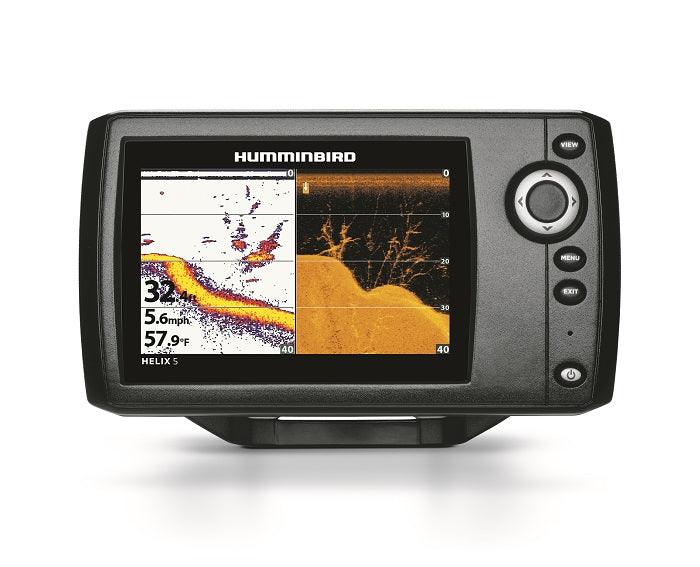

Humminbird HELIX 5 DI G2 Fishfinder

Model: 410200-1
UPC: 082324049019
  • Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
  • SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
  • Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
  • Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.

The HELIX 5 DI G2 with their new user interface and operating system, features a brilliant 800H x 480V, 5"" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.

Specifications
Display size 5 in
Display resolution 800 x 480
Display type Color TFT
Display colors grayscale 16-bit
Standard sonar Down Imaging/DualBeam PLUS
Standard sonar coverage 16°, 28°, 45° & 75° @ -10db
Standard sonar frequency 455/800/200/455 kHz
target separation 2.5 in
Power output RMS 500 watts
power output peak to Peak 4000 watts
Depth capability 350 ft (DI) & 600 ft (2D)
Temperature Built-in transducer
Speed Optional
Backlight LED
PC Connect Optional
Switchfire sonar Yes
Split screen zoom Yes
Split Screen Bottom Lock: Yes
Large digit view Yes
Card reader No
Input Voltage 10.8-20 VDC
Input Draw 650mA
Dimensions Gimbal Mount:7.55""W x 4.64""H x 3.3""D
Indash Mount:7.55""W x 4.28""D x 1.13""D

What's in the Box:
  • Helix 5 DI G2
  • Bracket
  • Powercord
  • XNT 9 DI T
  • Documentation
