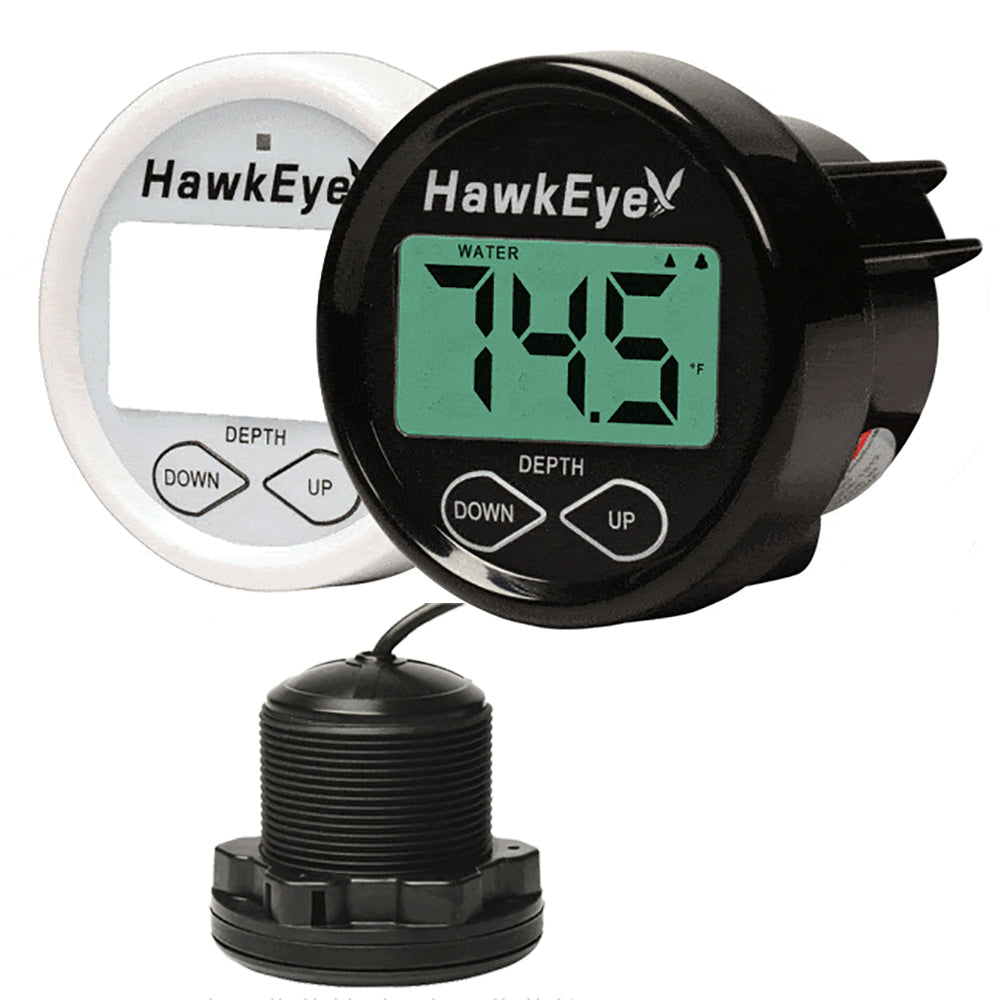

Hawkeye DepthTrax In-Dash Digital Depth & Temp Gauge - Thru-Hull

DepthTrax Dash Digital Depth and Temp Gauge - Thru-Hull

The DepthTrax 2BX includes all the advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, but also integrates dual temperature displays and an AIRMAR, ultra-sensitive, high-performance thru-hull transducer. With a simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.

The DepthTrax 2BX delivers a combination of performance and affordability unrivaled in any other depth sounder.

Features:

• Algorithmic programming significantly reduces false readings and produces unmatched precision


• EasyTouch programming allows one-touch access to the user settings


• User programmable keel offset automatically adjusts depth readings for vessels draft requirements


• Selectable Imperial or Metric readout


• Dual Upper and Lower depth alarms can be set throughout the full depth range


• 3-Stage Advanced Warning System clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting


• Displays air water temperature in F or C


• Automatic memory retention of all user settings


• Removable face system - includes White Black faceplates and White/Black trim rings


• No glare, polarized LCD icon display with storage sun cover


• SoftGlow backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing

Technical Specifications:

• Gauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm)


• Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm)


• Gauge Cut-out Size - 2"


• Operating Temperature - 0 to 160 F (-18 to 71C)


• Depth Range - 2.5' to 600' (.7 to 180 M)


• Transducer Type - Thru-Hull


• Transducer Cut-out Size - 2"


• Transducer Frequency - 200kHz


• Transducer Beam Angle - 14


• Transducer Cable Length - 30' (9 M)


• Power Requirement - 12 - 14 VDC

In the Box:

• Gauge


• Bezel/Faceplate - Black and White


• Display sun cover


• Mounting hardware


• Transducer - thru-hull w/30' cable


• Instruction manual

*Sold as an Individual
