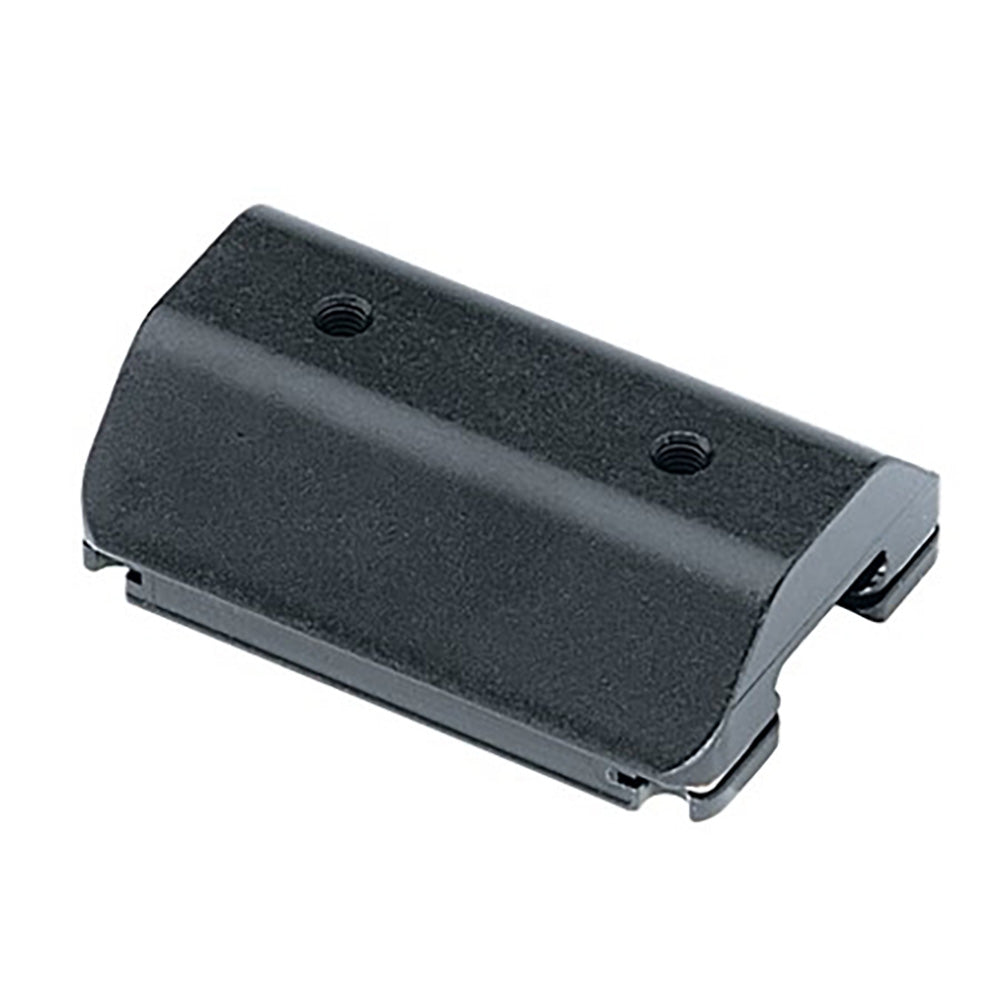

Harken 13mm High-Load Trolley w/2X M4 Tapped Holes

13mm High-Load Trolley with 2X M4 Tapped Holes

This trolley features recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for moving loads and equipment, hoisting, and moving stage equipment, and architectural solutions.

Features:

• High-load trolley with two M4-tapped holes on top


• Torlon ball bearings handle high loads, reducing friction so the trolley moves smoothly along the rail


• Retaining clips keep ball bearings captive when the trolleys are removed for maintenance

Specifications:

• Length (mm): 56 mm


• Length (in): 2-3/16 in


• Width (mm): 40 mm


• Width (in): 1-9/16 in


• Weight (g): 57 g


• Maximum Rated Load (kN): 1.4 kN


• Height (mm): 19 mm


• Height (in): 3/4 in


• Weight (oz): 2.01 oz


• Breaking Load (kN): 6.7 kN
