Garmin

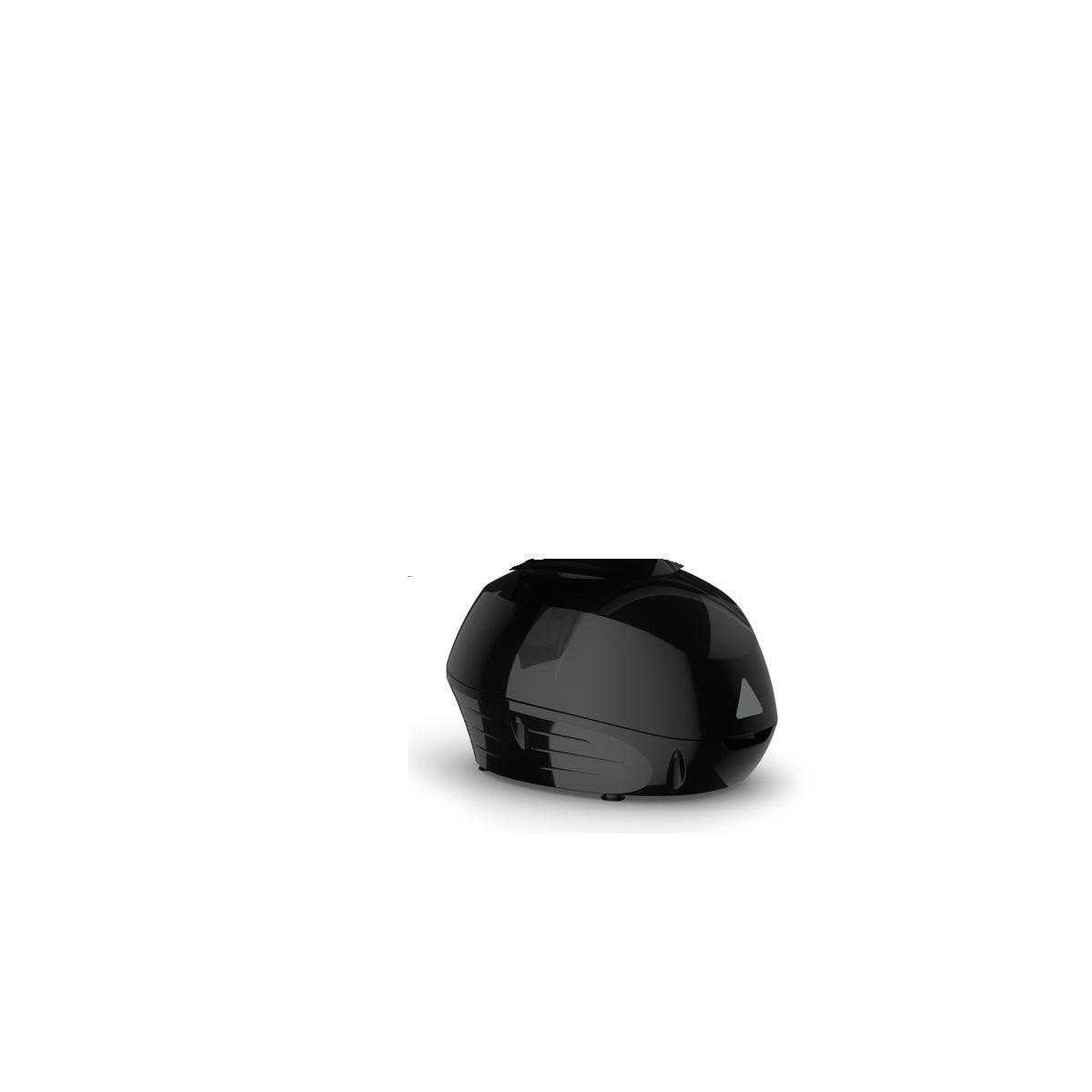

Garmin GMR Fantom 250W Radar Pedestal Only Black

Garmin GMR Fantom 250W Radar Pedestal Only Black

$10,299.99
$10,299.99
Sale Sold out

Garmin fantom 250 watt Pedestal and Cable only - Black

Model: 010-01364-60
  • Know what’s coming. MotionScope™ technology shows targets in color as they move toward you or away.
  • GMR Fantom brings the power. 120 watts of it, actually.
  • Get high resolution without wasting energy, thanks to pulse compression.
  • Add even more detail to your maps with radar overlay — even in a split-screen view.

This 120-watt radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.

Specifications
General
DIMENSION Pedestal: 16.6"" x 14.3"" x 10.7""
WEIGHT 34.7 lb (15.7 kg)
WATERPROOF IPX6
ROTATION SPEED (RPM) 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)
MAXIMUM RANGE 96 nm
MINIMUM RANGE 6 meters
Electrical Features
POWER INPUT 10-32 V DC
TRANSMIT POWER 250 W
Radar Features
DUAL RANGE Yes
OVERLAY Yes
DUAL RADAR SUPPORT Yes
AUTO BIRD GAIN Yes
AUTO GAIN Dynamic
MARPA TARGET TRACKING yes (requires heading sensor, sold separately)
ECHO TRAILS Yes
MOTIONSCOPE Yes
PROGRAMMABLE ANTENNA PARKING Yes
TARGET SIZE Yes
SCAN AVERAGING Yes
Antenna Sold Separately

What's in the Box:
  • GMR Fantom 250 watt Pedestal - Black
  • Mounting hardware kit and template
  • Right angle power cable (15 meters)
  • Right angle network cable (15 meters)
  • Documentation
