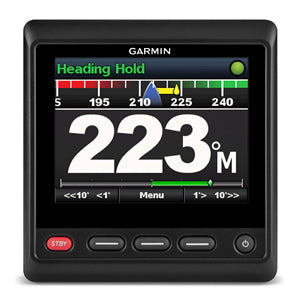

Garmin GHC20 Color Autopilot Control Display

Discontinued, Limited to stock on hand.

Garmin GHC20 Color Autopilot Control Display

Garmin GHC 20 Marine Autopilot Control Unit

Model: 010-01141-00

• Compatible with legacy Garmin autopilots as well as newer Garmin autopilots; can be controlled with quatix® marine watch

• Large, bright 4-inch color glass-bonded display with anti-glare finish

• Easy to read from a distance and 170 degree viewing angle

• Enhanced night time readability with backlight dimmer and full color or new red/black or green/black color schemes

• Enhanced daylight readability with new high-contrast color option

The GHC 20 autopilot helm controller is compatible with newer Garmin autopilots as well as legacy models on both power and sail vessels.

It's large, bright 4-inch color display is easy to read at a distance and 170 degree viewing angle. Glass-bonded anti-glare lens prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control.

An optional handheld wireless remote control is available; however, for the highest level of convenience, control the GHC 20 using quatix, the world’s first marine GPS navigation watch featuring ANT® wireless technology. Power is supplied by the NMEA 2000® network. Included are 2 trim snap piece cover options which allow you to match the GHC 20 with the new GPSMAP® 500/700 series, GPSMAP 8000 Glass Helm series or legacy Garmin chartplotters.

Specifications

Unit dimensions, WxHxD
4.3 " x 4.4 " x 1.9 " (10.9 x 11.2 x 4.8 cm)

Display resolution, WxH
320 x 240 pixels

Display type
QVGA color LCD display

NMEA output
NMEA 0183, NMEA 2000®

Supply voltage
Powered by NMEA 2000 bus, 9-16 VDC, units operate up to 32 VDC

Operating temperature
-15° C to 70 C° (5° F to 158° F)

Max power consumption
3W

Viewing angle
170°

Brightness
1200 cd/m2 (NIT)

Water rating
IPX7

NMEA 2000 LEN (Load Equivalency Number)
7 (350 mA at 9VDC)

What's in the Box:

• GHC 20

• Black trim piece snap cover

• Protective cover

• Flush mount gasket and hardware

• NMEA 2000 drop cable

• NMEA 2000 T-connectors and terminators

• Documentation
