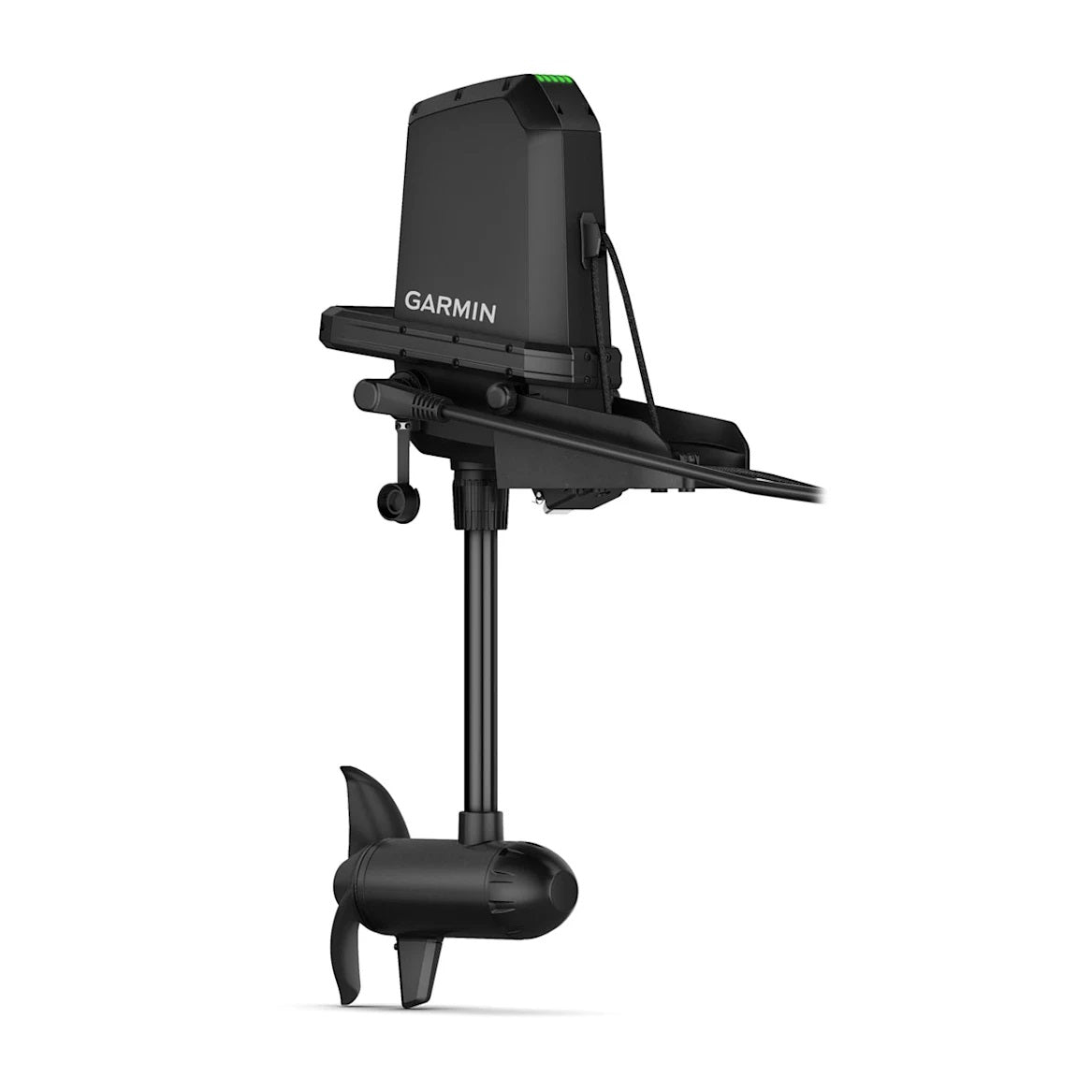

Garmin Force Current Kayak Trolling Motor with Foot Pedal

Garmin Force Current Kayak Trolling Motor with Foot Pedal

Garmin Force® Current Trolling Motor for Kayaks with Power Steer Foot Pedals

• LEGENDARY FORCE PERFORMANCE AND RELIABILITY


• HANDS-FREE WIRELESS THROTTLE AND STEERING CONTROL WITH POWER STEER PEDALS


• STAY ON THE FISH WITH ANCHOR LOCK AND MULTI-BAND GPS


• SIMPLE AND INTUITIVE INSTALLATION


• WIRELESS INTEGRATION WITH GARMIN CHARTPLOTTERS


• WIRELESS MAN OVERBOARD TAG

Power steer pedals connect wirelessly to the motor to reduce clutter on the deck. This all-in-one steering and throttle solution allows you to fish, troll, cast and fight without ever setting the rod down. Programmable pedal buttons give you quick access to key features such as anchor lock, heading hold and more.

Turn your boat quickly with full forward and reverse thrust in any direction. Weave through tight timber, turn in a tight circle, sneak along shorelines, and creep through weed beds while you fish. Use the included wireless handheld remote for point-and-go gesture steering.

Wireless integration with your Garmin chartplotters allows you to create routes and tracks for the trolling motor to follow while you fish. You can also adjust throttle and steering on the chartplotter control bar, adjust motor settings and more.

The anchor lock technology with multi-band GPS provides our most precise boat positioning technology to help keep the boat in one place, even in windy conditions or strong current.

When wearing the included wireless man overboard tag, the motor cuts off if it detects you fall overboard.

An efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing — and not running out of battery.

Use the included remote to help you navigate with our simple point-and-go technology.

Quickly stow or deploy the prop with one hand when you need to glide over shallow areas with the included stow rope and cleat kit.

Connect your compatible Garmin smartwatch to control steering, anchor lock and more from your wrist.

Engage anchor lock, heading hold and more with programmable foot pedal buttons.

Use the high-efficiency prop to maximize battery life, or the weedless prop to cut through aquatic vegetation.

The 4-hole mounting pattern makes installation easy on many different types of kayaks. The wireless foot pedals and rail system are also designed to accommodate a wide variety of installation methods.

Get on and off the water fast with simple motor and pedal installation and removal.

Don’t spook the fish; the motor is extremely quiet above and below the water.

The sturdy alloy shaft and components are built to endure harsh saltwater and freshwater environments with advanced corrosion protection.

Color
black

For use in
freshwater, brackish water and saltwater

Mount style
4-hole tilt mount

Max thrust
50 lbs (ISO13342) using high efficiency propeller at 24 V
30 lbs (ISO13342) using high efficiency propeller at 12 V

Voltage
12 V or 24 V

Electric steering
Yes

Built-in heading sensor
Yes

Built-in GPS
yes (dual frequency GPS)

Warranty
3-year, limited lifetime on shaft

Water rating
IPX7

Mounting location
stern

Wireless remote
yes (included)

Shaft length (from mount to top of drive motor)
16.6" (max); 11.4" (min)

Power steer foot pedals (kayak) compatible
yes (included)

Battery indicator
Yes

Variable speed control
yes (20 steps)

quatix remote control supported
Yes

Manual reverse control
Yes

Autopilot Features

Route following
Yes

Anchor lock
Yes

Smart Anchor Lock features
Yes

Anchor lock jog
Yes

Heading hold
Yes

Cruise control
Yes

Gesture features
yes (manual+, heading hold+, jog+)

Power Steer Foot Pedals (Kayak)

Dimensions
5.63" x 9.75" x 3.63" (max, single pedal when mounted)

Wireless communication
Yes

Power installation
batteries (2 AA)

AA battery life
1 full season

Water rating
IPX7

Remote Features

Display size
1.2" (30.2 mm) diameter

Display resolution
240 x 240 pixels

Display type
color, sunlight-visible, transflective memory-in-pixel (MIP)

Chartplotter user-programmable keys
Yes

Autopilot feature control
Yes

Water rating
IPX7

Battery life
typical use with backlight at low, 43 weeks

Floats
Yes

What's in the Box:

• Force® Kayak Propulsion System


• Left and right foot controls (with rail mounts and kickstands)


• Force trolling motor remote with lanyard


• Black MOB tag


• Power cable


• Pull rope and cleat


• Skeg


• Performance propeller


• Weedless propeller


• Mounting hardware


• Documentation
