Garmin ECHOMAP UHD 94sv Reman US and Canada GN+ with GT54 Transducer

Remanufactured.  Limited stock on hand.

Garmin ECHOMAP UHD 94sv Reman US and Canada GN+ with GT54 Transducer

Garmin ECHOMAP 94sv UHD Combo US and Canada GN+ with GT54 Transducer - Remanufactured

Model: 010-N2343-51

• See below and around your boat in incredible detail with optional transducer

• US and Canada GN+

• Share data with other devices on your network (7" and 9" models only)

• Manage your marine experience from nearly anywhere

• Control the most powerful trolling motor available

• Create your own maps on the fly and tailor them to fit your needs

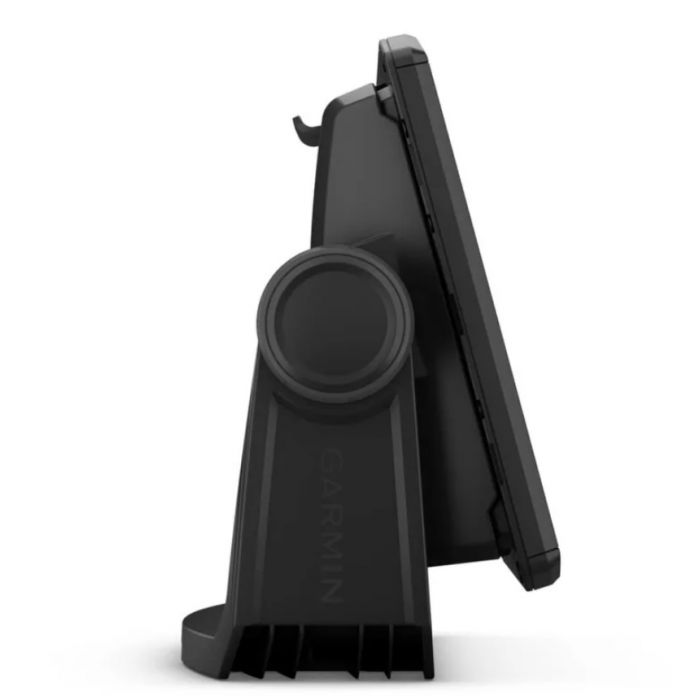

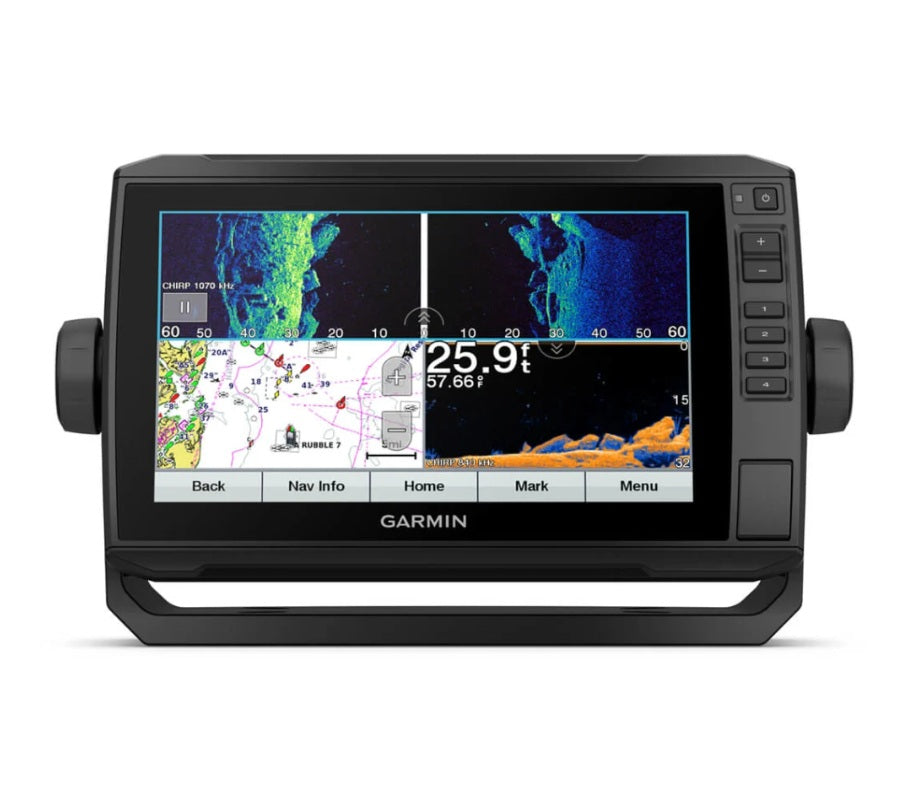

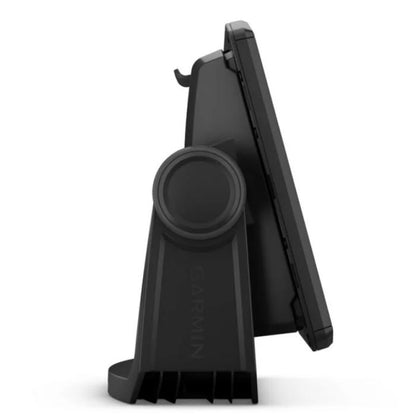

The sunlight-readable 9" touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope scanning sonar system, which lets you see all around your boat in real time.

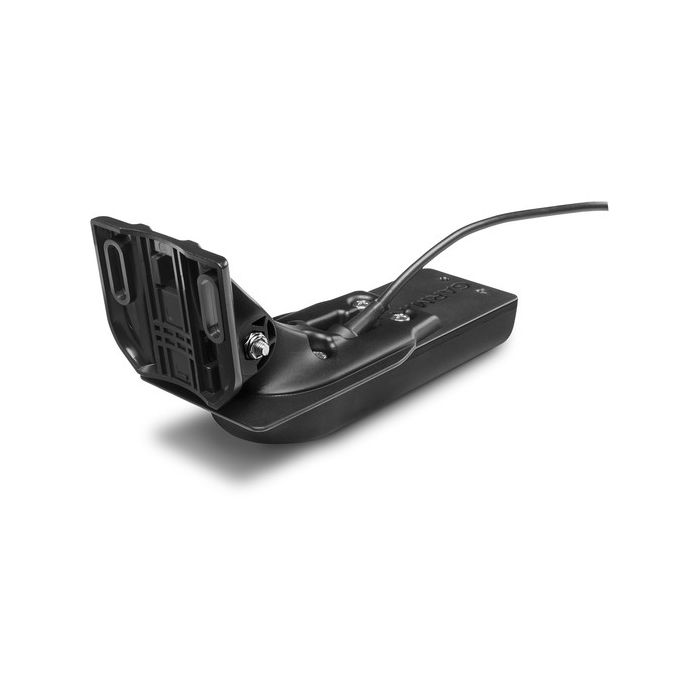

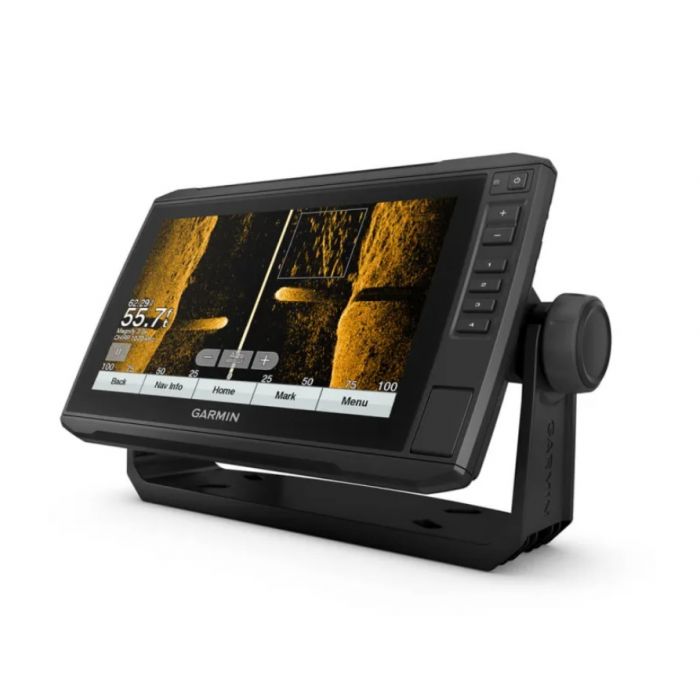

Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 17,000 lakes with up to 1’ contours.

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7" and 9" models only).

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications1, software updates, Garmin Quickdraw Community data and more.

Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.

Specifications

General

Physical dimensions
11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm)

Display size
7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)

Display resolution
400 x 800 pixels

Display type
WVGA display

Weight
2.3 lbs (1.0 kg)

Water Rating
IPX7

Power consumption
18W

Antenna
Internal or external over NMEA 2000

Mounting options
Bail or flush

Receiver
5 Hz

Garmin Marine Network ports
1 Panoptix port

Maps & Memory

Preloaded maps
US and Canada GN+

Accepts data cards
1 microSD card; 32 GB maximum size

Waypoints
5,000

Routes
100

Track log
50,000 points; 50 saved tracks

Outdoor Recreation Features

Tide tables
Yes

Chartplotter Features

Garmin Sonar compatible
Yes

Supports AIS (tracks target ships position)
Yes

Supports DSC (displays position data from DSC-capable VHF radio)
Yes

GCV Black Box sonar support
Yes

ActiveCaptain compatible
Yes

Sailing Features
Yes

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable
Yes

Dual-beam (77/200 kHz) sonar capable
Yes

Transmit power
500 W (RMS) / 4,000 W (peak to peak)

CHIRP sonar technology
Yes (Built-in)

ClearVü
Yes with CHIRP (built-in)

SideVü
Yes with CHIRP (built-in)

Maximum depth
2,300 ft @ 77 kHz, freshwater

Bottom lock (shows return from the bottom up)
Yes

Water temperature log and graph
Yes

Sonar recording
Yes

Sonar history rewind
Yes

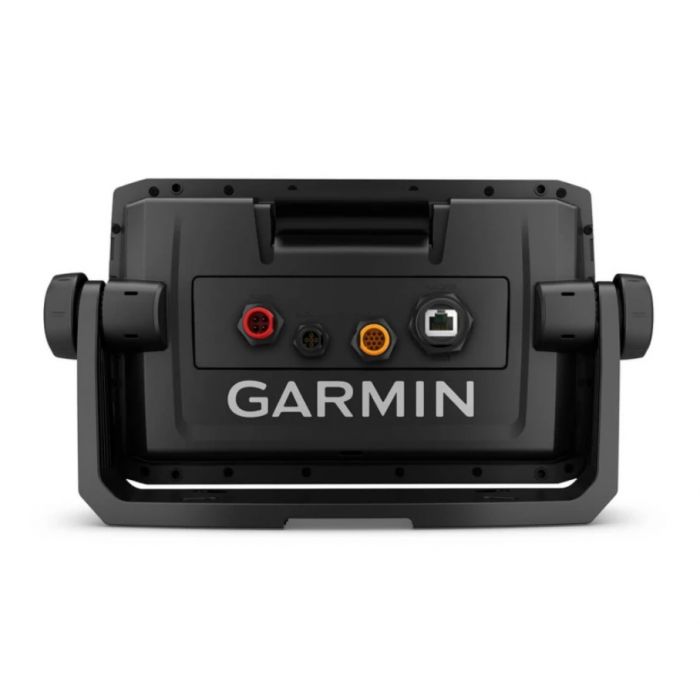

Connections

NMEA 2000® compatible
Yes

Transducer pin numbers
12

NMEA 0183 input ports
1

NMEA 0183 output ports
1

Video input ports
None

Video output ports
None

Wireless connectivity
Yes

What's in the Box:

• ECHOMAP 94sv UHD ComboUS and Canada GN+ - Remanufactured

• GT54UHD-TM transducer

• Power/data cable

• Tilt/swivel mount with quick release cradle

• Flush mount

• Protective cover

• Hardware

• Documentation
