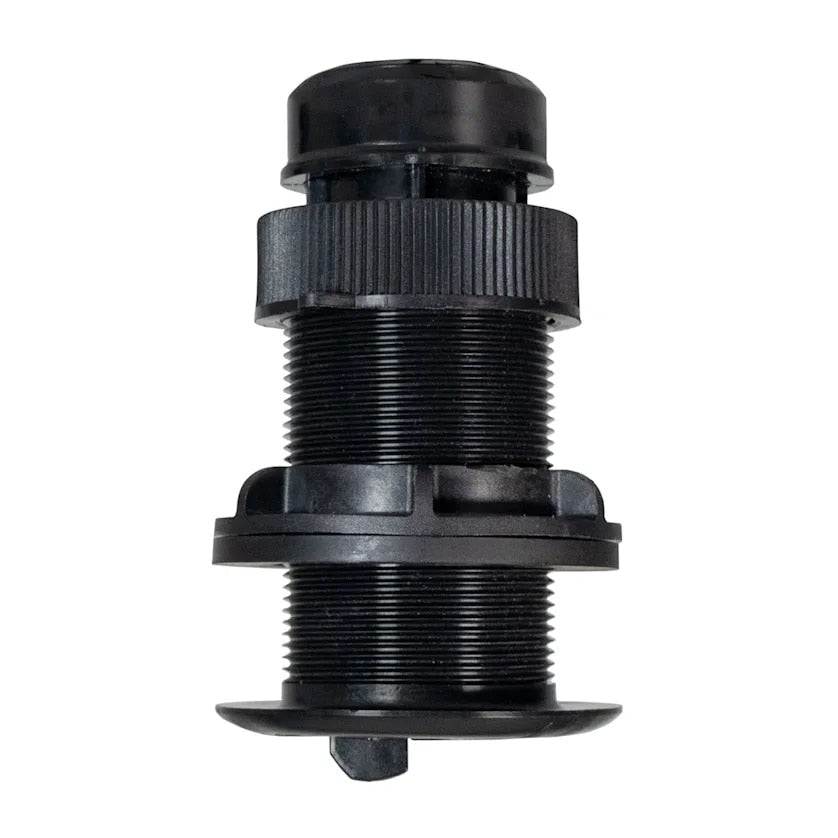

Garmin DST820 Smart Transducer with Plastic Housing
Garmin DST820 Smart Transducer with Plastic Housing
Order and earn 2110 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
Garmin DST820 Smart Transducer with Plastic Housing
Model: 010-11051-30
This plastic thru-hull NMEA 2000 smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330 feet and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.
Wireless Bluetooth connectivity makes it easy to manage calibration of sensor data through the AIRMAR Cast app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducers wide, fan-shaped beamwidth of 10 x 44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.
Specifications
| General | |
| Transducer frequency | 235 kHz |
| Transducer power | 100 W |
| Transducer beamwidth | 10 x 44 degrees |
| Transducer maximum depth | 330 ft |
| Transducer depth/speed/temperature | Depth, Temperature and Speed |
| Connector | NMEA 2000 |
| Transducer supported deadrise/transom angles | 0 to 22 degrees |
| Transducer Support | |
| Transducer frequency | 235 kHz |
