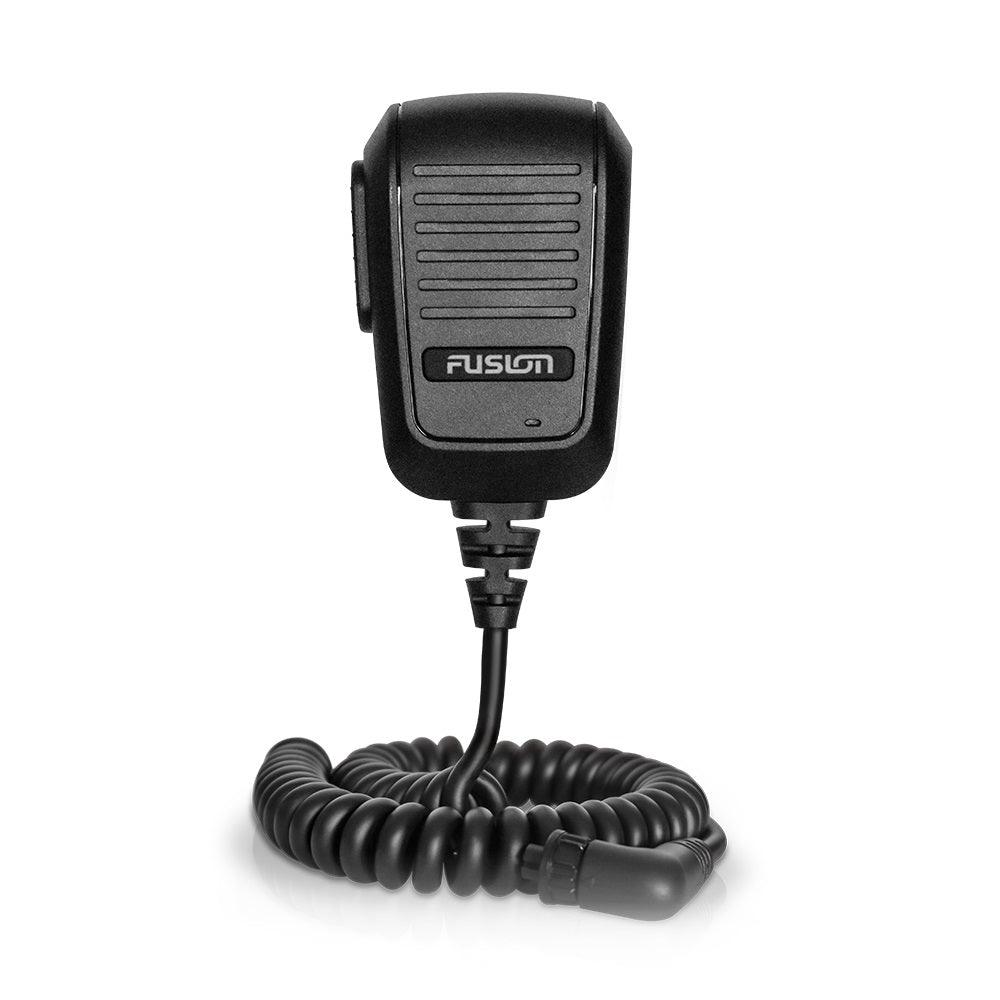

Fusion MS-FHM Handheld Microphone
Model: 010-13014-00- Compact Design: The Fusion Handheld Microphone features built-in pre-amplification and its compact size ensures that it fits easily in the dash space of your helm using the microphone hanger.
- Playback Override: Make announcements even when listening to your favorite song. Simply squeeze the trigger on your Handheld Microphone and the audio playback on your Fusion stereo will be paused, allowing onboard broadcasting.
- IPX7 Water Resistant: Designed and engineered for the marine environment, the handheld microphone meets IPX7 international standards for water resistance and is built to last.
The Fusion® Handheld Microphone is designed for compatible Fusion marine stereos with telemute feature, enabling you to make announcements over your onboard audio entertainment system. Use the Handheld Microphone to communicate with people in and around your boat - the perfect device for communicating when wakeboarding, water-skiing or fishing, for social gatherings or boat raft-ups, on tourist boats and warning others of water-hazard situations.
The Fusion Handheld Microphone is a plug-and-play solution that features built-in pre-amplification and a compact size - making it an easy addition to the dash space of your helm. A microphone hanger is included in the box for a clean and tidy finish.
Make announcements even when listening to your favorite song. Simply squeeze the trigger on your Handheld Microphone and the audio playback on your Fusion stereo will be paused, allowing quick onboard broadcasting.
Designed and engineered for the marine environment, the Handheld Microphone meets IPX7 international standards for water resistance and is built to last.
Note: Disable PartyBus™ on PartyBus-Network enabled stereos to avoid feedback.
SpecificationsFrequency Response | 100 Hz to 4 kHz |
Maximum Output | 1 V RMS |
Total Harmonic Distortion + Noise (Vo = 1 V RMS, 1 kHz) | < 0.1% V RMS |
Gain | +18 ± 0.5 dB |
Load Impedance | 10K ohms |
Operating Voltage | 10.5 to 32 V DC |
Current Consumption (+14.4 V Supply Voltage) | 5 mA |
Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
Ingress Protection Rating | IPX7 |
Dimensions (Width x Height x Depth) | 60.35 mm x 87.86 mm x 34 mm [2-3/8"" x 3-7/16"" x 1-3/8""] |
Compatible Fusion Stereos | MS-RA770, MS-RA670, MS-WB670, MS-RA210, MS-RA70, MS-RA70N, MS-RA70NSX, MS-BB100, 755 Series, 650 Series and more. |
Warranty | 1 year |
