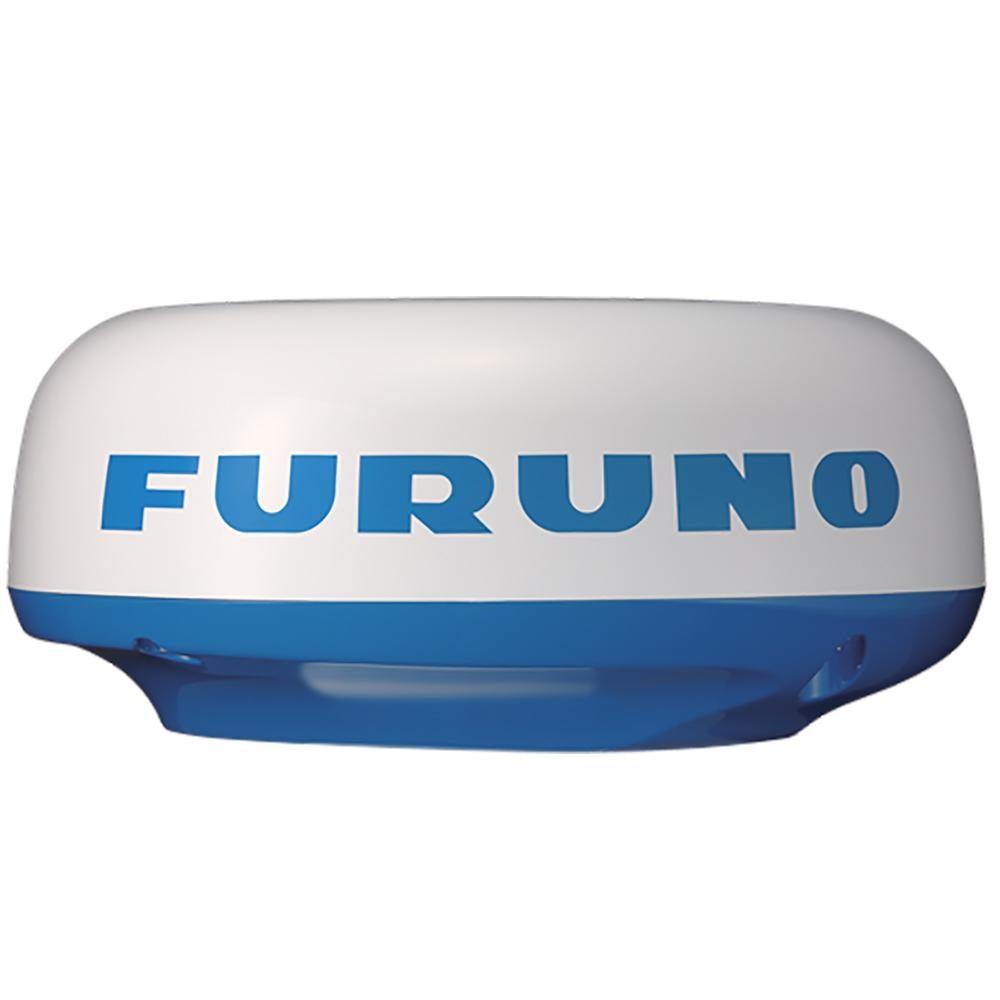

Furuno DRS4DL+ 19"" UHD 4kW Radar Dome No Cable
Model: DRS4DL+- Signal Cable not included as of 06/20/2022
The DRS4DL+ is a , 19"" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19"" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.
The DRS4DL+ spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.
Fast Target Tracking (TT) / ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple.
Specifications| Antenna Size | 19 inches |
| Band | X-Band |
| Antenna Type | Radome |
| Beam Width | 5.2 degrees |
| Power Output | 4 kW |
What's in the Box:
- DRS4DL+-DOME
- Mounting Hardware
- Mounting Template
- Installation Manual
