Flir Scion Ptm166 Thermal Monocular 640 X 480 32d Fov Ip Streaming 60hz

Flir Scion Ptm166 Thermal Monocular 640 X 480 32d Fov Ip Streaming 60hz

Regular price $3,459.00
Regular price Sale price $3,459.00
Sale Sold out

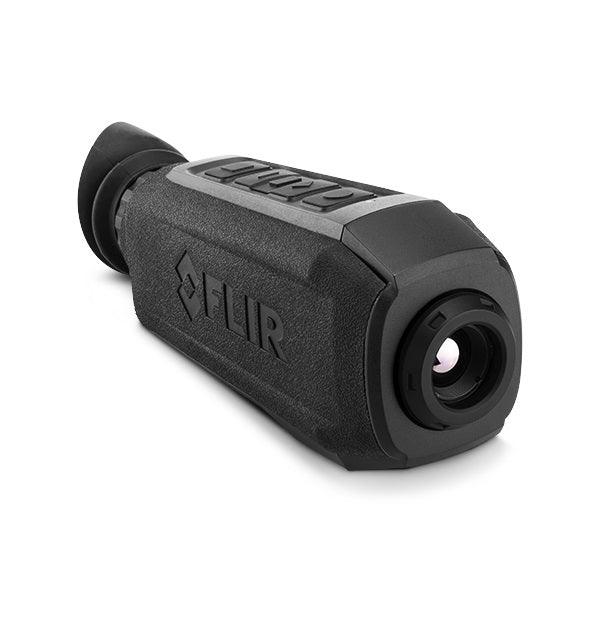

FLIR SCION PTM166 Thermal Imager 640x480 60 Hz 14mm

Model: 7TM-01-F310
  • Pairing Scion PTM with FLIR’s innovative TruWITNESS platform provides public safety agencies with enhanced situational awareness and real-time centralized information.
  • The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic
  • The advanced image processing of FLIR’s Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.
Detector Type 640 x 512
Internal Memory 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
Size 227 76.8 60.5 mm (9 3 2.4 in)
Weight Without Batteries: 452 g; With Batteries 572 g
Eye Relief 16 mm
Color (housing) Black
Lens System 14 mm
Optical Magnification .7x
Display Focus Manual
Core Technology BOSON 12 µm Vox Microbolometer
Bluetooth BLE 4.1+
USB USB-C; Power In; Video Out; Video and Image File Transfer
Geo Positioning [GPS] No
Wifi Video Streaming, File Transfer
Mounting ¼-20 Tripod Mount
Digital Zoom 1X , 2X , 4X,8x
Field of View 32° 24°
Refresh Rate 60hz
Detection Range Performance [1.8 m man] 550m
Auto Power Off Yes
Display Quad-VGA (1280x960) High definition display
Battery Life Up to 4.5 hours at 20°C
Battery Type 6x CR123A 3V Lithium Battery
Temperature Imaging Modes White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Viewing Modes Scouting, Picture-in-Picture
Picture While Recording Yes
Real Time Clock Yes
DateTime Stamp Yes
Magnetic Compass Yes
Accelerometer Yes
