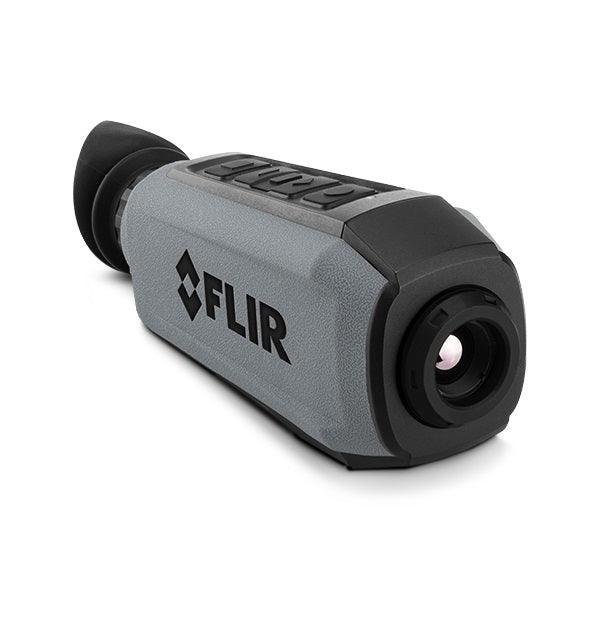

FLIR SCION OTM260 Thermal Monocular 640 x 480 24d FOV IP Streaming 9Hz
FLIR SCION OTM260 Thermal Monocular 640 x 480 24d FOV IP Streaming 9Hz
Regular price
$3,149.00
Regular price
Sale price
$3,149.00
Unit price
/
per
Couldn't load pickup availability
FLIR SCION OTM260 Thermal Imager 640x480 9 Hz 18mm
Model: 7TM-01-F130- Revisit every wildlife encounter in sharp thermal imaging with internal and microSD® expandable memory
- Polished menus allow quick thermal palette adjustments and provide easy access to new features such as picture-in-picture zoom, video recording, and GPS functionality.
- The advanced image processing of FLIR’s Boson® thermal core and a vivid OLED display offer superb, unwavering vision in challenging environments.
| Detector Type | 640 x 512 |
| Internal Memory | 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB) |
| Size | 227 76.8 60.5 mm (9 3 2.4 in) |
| Weight | Without Batteries: 452 g; With Batteries 572 g |
| SYSTEM OVERVIEW | |
| Eye Relief | 16 mm |
| Color (housing) | Gray / Black |
| Lens System | 18 mm |
| Optical Magnification | 1x |
| Display Focus | Manual |
| Core Technology | BOSON 12 µm Vox Microbolometer |
| CONNECTIONS & COMMUNICATIONS | |
| Bluetooth | BLE 4.1+ |
| USB | USB-C; Power In; Video Out; Video and Image File Transfer |
| Geo Positioning [GPS] | Yes |
| Wifi | Video Streaming, File Transfer |
| ENVIRONMENTAL | |
| Mounting | ¼-20 Tripod Mount |
| IMAGING & OPTICAL | |
| Digital Zoom | 1X , 2X , 4X,8x |
| Field of View | 24° 18° |
| Refresh Rate | 9 Hz |
| Detection Range Performance [1.8 m man] | 710 M |
| METER DATA | |
| Auto Power Off | Yes |
| Display | Quad-VGA (1280x960) High definition display |
| POWER | |
| Battery Life | Up to 4.5 hours at 20°C |
| Battery Type | 6x CR123A 3V Lithium Battery |
| UI-UX | |
| Temperature Imaging Modes | White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava |
| Viewing Modes | Scouting, Picture-in-Picture |
| Picture While Recording | Yes |
| Real Time Clock | Yes |
| DateTime Stamp | Yes |
| Magnetic Compass | Yes |
| Accelerometer | Yes |
What's in the Box:
- Scion OTM260
- USB Charging cable with AC Adapter
- Video out cable
- Wrist strap
- Molle bag
- Quick start guide
