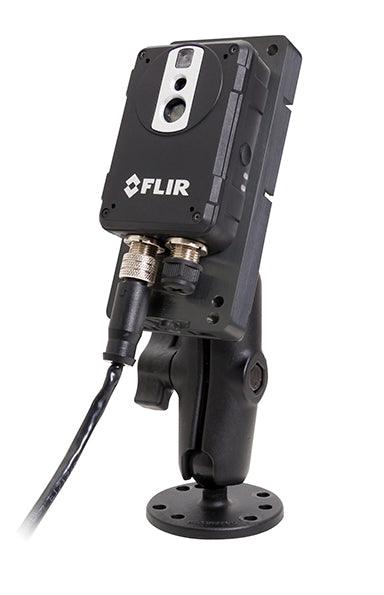

FLIR AX8 Thermal Monitoring Camera
Model: E70321UPC: 723193799109
- State-of-the-art thermal monitoring of engines and onboard machinery
- Powered by Lepton, FLIR’s most advanced micro thermal camera
- Exclusive Multi-Spectral Dynamic Imaging (MSX®) for easy-to-understand thermal imagery.
- Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery
- Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds
- Evaluate ongoing temperature trends
- Help avoid costly repairs and unwanted breakdowns
- View thermal, visible, and MSX video imagery on Raymarine LightHouse II™ MFDs
- Continuous thermal monitoring with audible and visual alarms across the Raymarine network
- Connect up to eight AX8 cameras using Ethernet
- View and record thermal video and snapshots from any Raymarine display on the network
- Easy setup and alarm programming with a PC and web browser
Gain an entirely new view of your vessel’s mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.
Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR’s exclusive MSX® imaging blends visible and thermal images for more detailed imagery that is easier to understand.
SpecificationsIMAGING & OPTICAL DATA | |
IR Resolution | 80x60 pixels |
Thermal Sensitivity / NETD | <0.10°C @ +30°C (+86°F) / 100mK |
Field of View (FOV) | 48° x 37° |
Focus | Fixed |
DETECTOR DATA | |
Detector Type | Focal Plane Array (FPA) Uncooled Microbolometer |
Spectral Range | 7.3-13µm |
VISUAL CAMERA | |
Built-in Digtal Camera | 640x480 |
Digital Camera FOV | Adapts to the IR lens |
Sensitivity | Minimum 10 Lux without illuminator |
MEASUREMENT | |
Object Temperature Range | -10°C to +150°C (14°F to 302°F) |
Accuracy | +/-2°C (+/-3.6°F) or +/-2% of reading (+10 to +100C@+10 to +35amb) |
MEASUREMENT ANALYSIS | |
Spotmeter | 6 |
Area | 6 Boxes with max. / min. / average |
Automatic Hot / Cold Detection | Max / Min temperature value and position shown within box |
Measurement Presets | Yes |
Atmospheric Transmission Correction | Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
Optics Transmission Correction | Automatic, based on signals from internal sensors |
Emissivity Corrections | Variable from 0.01 to 1.0 |
Reflected Apparent Temperature Correction | Automatic, based on input of reflected temperature |
External Optics / Windows Correction | Automatic, based on input of optics / window transmission and temperature |
Measurement Corrections | Global Object Parameters |
ALARM | |
Alarm Functions | Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set |
Alarm Output | Digital Out, store image, file sending (ftp), email (smtp), notification |
SET-UP | |
Color Palettes | Color palettes (BW, BW inv, Iron, Rain) |
Set-up Commands | Data / Time, Temperature °C/°F |
Web Interface | Yes |
STORAGE OF IMAGES | |
Storage Media | Built-in memory for internal storage |
Image Storage Mode | IR, Visual, MSX |
File Formats | Jpeg + FFF |
ETHERNET | |
Ethernet | Control, result and image |
Ethernet Type | 100 Mbps |
Ethernet Standard | IEEE 802.3 |
Ethernet Connector Type | M12 8-pin X-coded |
Ethernet Video Streaming | Yes |
Ethernet Power | Power over Ehternet, PoE IEEE 802.3as class 0 |
Ethernet Protocols | Ehternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) |
MARINE ELECTRONICS INTERFACE | |
Multifunction Displays | Network compatible with Raymarine LightHouse II multifunction displays |
IMAGE STREAMING | |
Image Streaming Formats | Motion JPEG, MPEG, H.264 |
Image Streaming Resolution | 640x480 |
Image Modes | Thermal, Visual, MSX (IR-image with enhanced detail presentation) |
Automatic Image Adjustment | Continuous |
POWER SYSTEM (POE Injector) | |
External Power Operations | 12/24VDC, 2W continuously / 3.1W absolute max |
External Power Connector | Screw Connection (12V/0V/Chassis) |
Voltage Allowed Range | 9-36VDC |
ENVIRONMENT DATA | |
Operating Temperature Range | 0°C to +50°C (32°F to +122°F) |
Storage Temperature Range | —40°C to +70°C (—40°F to +158°F) IEC 68-2-1 and IEC 68-2-2 |
Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles |
Encapsulation | IP67 (IEC 60529) |
What's in the Box:
- Infrared camera with lens
- Pinted documentation
- User documentation CD-ROM
- Cooling/mounting plate
- POE injector
- Camera PoE Cable
- Raymarine RayNet Ethernet cable
