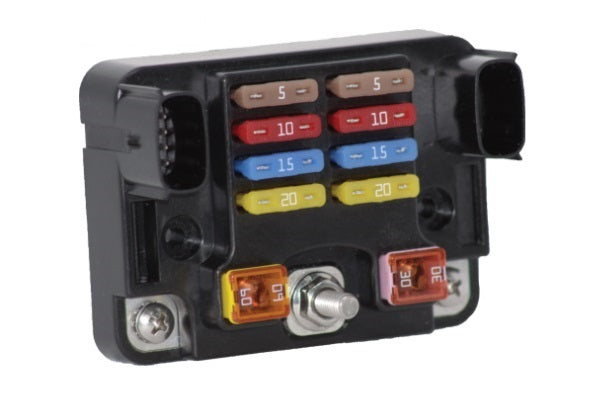

• EGIS Fuse Block ATO/JCase 8+2, M6 In With Cover Fuses Sold Separately
1 1

Egis Mobile Electronics

EGIS Fuse Block ATO/JCase 8+2, M6 In With Cover Fuses Sold Separately

EGIS Fuse Block ATO/JCase 8+2, M6 In With Cover Fuses Sold Separately

$41.99
$57.40 $41.99
Sale Sold out
FREE Shipping Available in the Continental U.S. Outside the Continental U.S. or Canada? Contact us to explore shipping options.

Order and earn 210 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

EGIS Fuse Block ATO/JCase 8+2, M6 In With Cover Fuses Sold Separately

EGIS Mobile Marine Fuse Block ATO/Jcase 8+2 M6 in

Model: 5015

  • Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.

  • Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs

  • Two (2) High-Amp (20-50A) Outputs Supports All Necessary Circuit Protection Needs in One Product

  • Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.

Specifications

Total Continuous Current
200

Max Current Per ATO Fuse
22

Voltage range
8-36vDC

Max Current Per LP L-Case Fuse
50

Max Current Per 4 POS MX-150
50

Max Wire Gauge, MX-150 Connector
14 AWG

View full details
