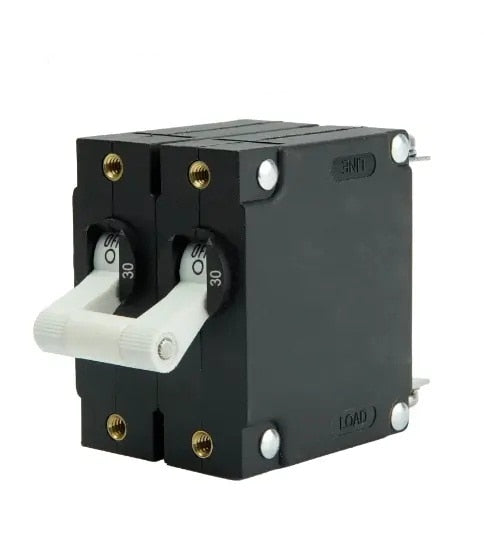

EGIS A Series White Toggle Panel Mount Circuit Breaker Dual Pole AC 30 Amp Retail Pack
EGIS A Series White Toggle Panel Mount Circuit Breaker Dual Pole AC 30 Amp Retail Pack
Regular price
$28.99
Regular price
Sale price
$28.99
Unit price
/
per
Order and earn 145 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
Couldn't load pickup availability
EGIS A Series White Toggle Panel Mount Circuit Breaker Dual Pole AC 30 Amp Retail Pack
Model: 3202-30- AC & DC Rated to cover a wide range of system application needs.
- Stainless Steel Self Locking Hardware ensures robust connections & long term connection reliability.
- Easily Mounts In Standard Panels accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
- 4 Year Warranty: We stand behind our product's ability to meet your needs.
Protects Electrical Circuits allows from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
High Interrupt Current to safely protects circuits connected to large paralleled battery banks with significant available power.
Specifications| CONTINUOUS CURRENT (AMPS) | 30 |
| MAX VOLTAGE | 277 Vac / 80 Vdc |
| Regulatory Compliance | UL 1077 |
| Electrical Endurance @ Rated current | 6,000 Cycles |
| Interrupt Capacity | 5kA / 277Vac, 1.5kA / 80 Vdc |
