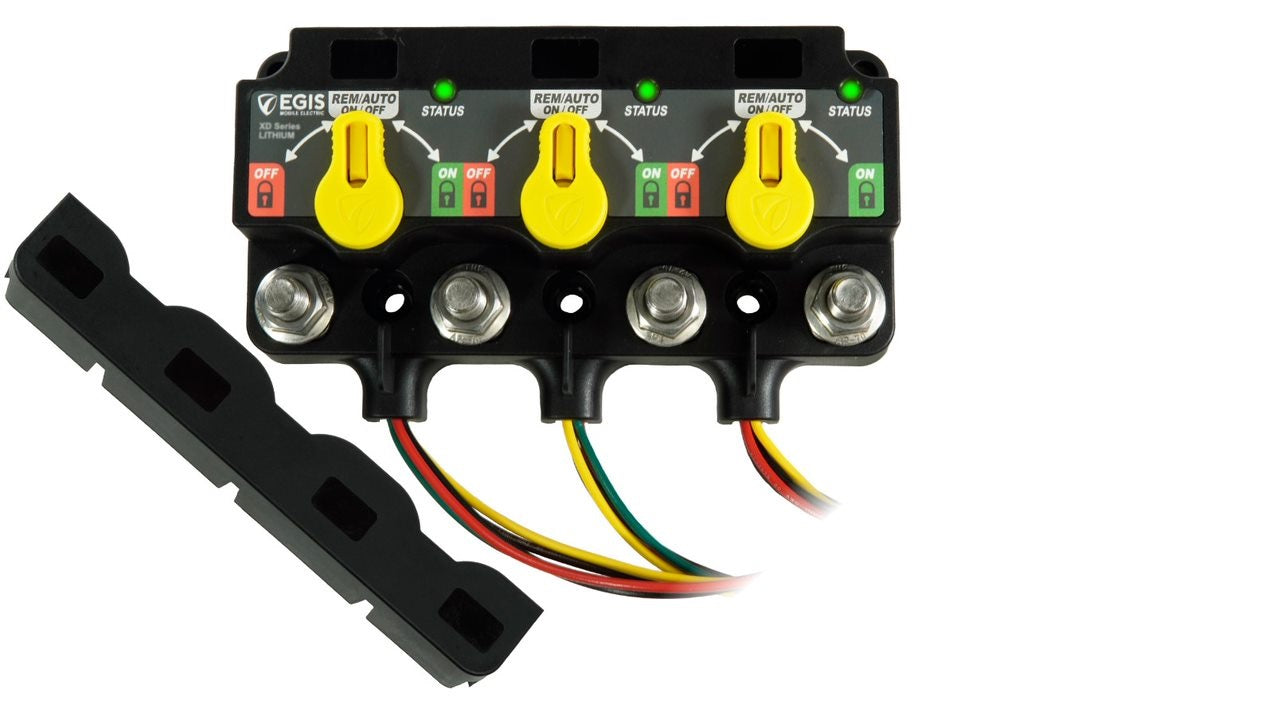

Egis 8520-1350 Xd Triple Flex Automatic Charging Relay With Knobs

EGIS 8530-1535 XD Triple Flex Automatic Charging Relay with Knobs

• Lithium Battery System Ready Designed for modern Lithium battery based electrical system applications that often require higher ON/OFF charge voltage settings over legacy battery chemistries.
• LED Status Display Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED
• 3-Position Manual Override Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.
• 40 Circuit Label Sheet Included Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.
• Protective Cover Included Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
• Stainless Hardware Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.
• Programmable Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.
• Integrated Vent High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.

Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)

Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.

35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.

Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.

90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functional
