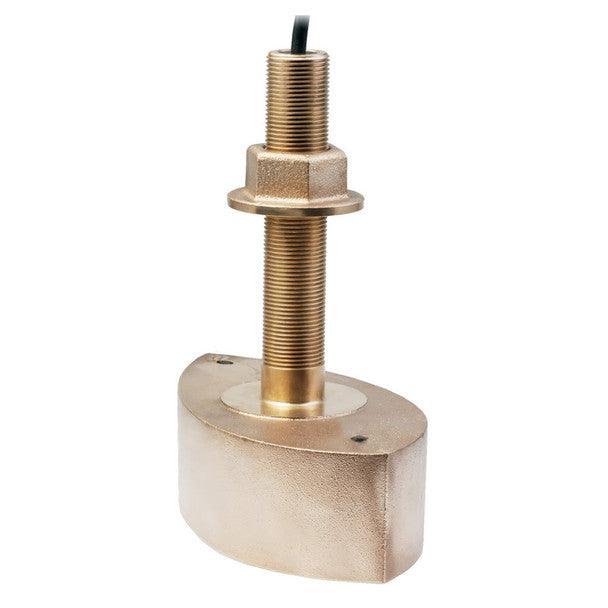

Echonautics Cb101d600cw 600w 50/200khz Bronze Thru-hull

Echonautics Cb101d600cw 600w 50/200khz Bronze Thru-hull

$206.99
$275.00 $206.99
Sale Sold out
FREE Shipping Available in the Continental U.S. Outside the Continental U.S. or Canada? Contact us to explore shipping options.

Order and earn 1035 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

Echonautics CB101D600CW 50/200kHz 600 Watt Bronze Thru-hull

Model: CB101D600CW

The cost-effective choice to get target detail in shallow water as well as good deep-water bottom tracking.

The CB101D600 is a stem thru-hull dual frequency transducer with 600 watts of power, in a bronze housing.

Specifications
Function Depth and Temperature
Frequency 50/200 kHz
Mount type Thru-hull
fairing block is optional
Deadrise Max deadrise of 20° with fairing block.
Material Bronze
RMS power 600 watts
Beamwidth 50kHz 42° -3db
200kHz 11° -3db
Depth Max @ 50kHz = 1200 ft
Max @ 200kHz = 700 ft
Temp sensor NTC

What's in the Box:
  • CB101D600CW transducer

View full details
