Echonautics
Echonautics Bt87h1kw-12 1kw 130-210khz High Chirp 0d Tilted Element Bronze Th
Echonautics Bt87h1kw-12 1kw 130-210khz High Chirp 0d Tilted Element Bronze Th
Regular price
$728.99
Regular price
$989.00
Sale price
$728.99
Unit price
/
per
Order and earn 3645 reward points!
Members of our rewards program earn points on every purchase. Not a member? Sign up now
EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.
Couldn't load pickup availability

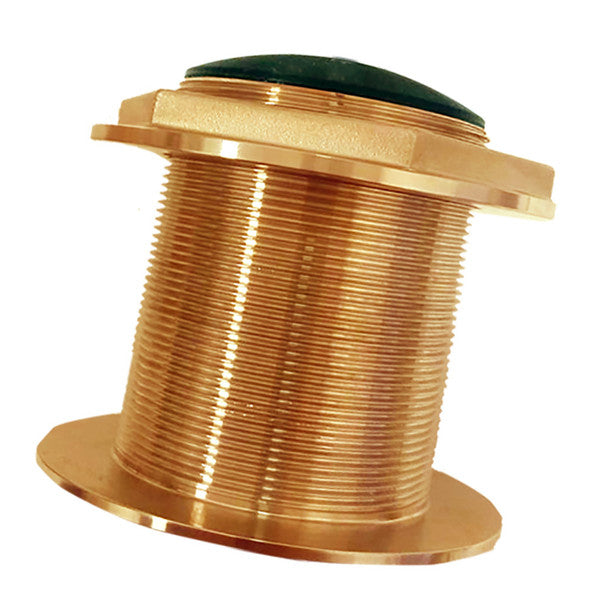

Echonautics BT87H1KW 130-210kHz 1kW High CHIRP 12° Tilted Element
Model: BT87H1KW-12- Superior shallow-water performance and bottom detail
The Echonautics BT87H1kW is a low-profile thru hull CHIRP transducer designed to minimize drag and to perform at high speeds.
Thanks to the narrow beamwidth, it is excellent for pinpointing fish holding tight to reefs, wrecks, and other structures.
Specifications| Function | Depth and Temperature |
| Frequency | CHIRP 130 - 210 kHz |
| Tilt/deadrise | 12° tilted version: for 8° to 15° hull deadrise |
| Material | Bronze |
| RMS Power | 1 kW |
| Beamwidth | 13° to 8° @-3db |
| Depth | Max 304 m (1,000 ft) |
| Temp. sensor | NTC |
| Acoustic window | Urethane |
| Cable length | 9 m (30 ft) |
| Hole diameter | 87.6 mm (3.45") |
