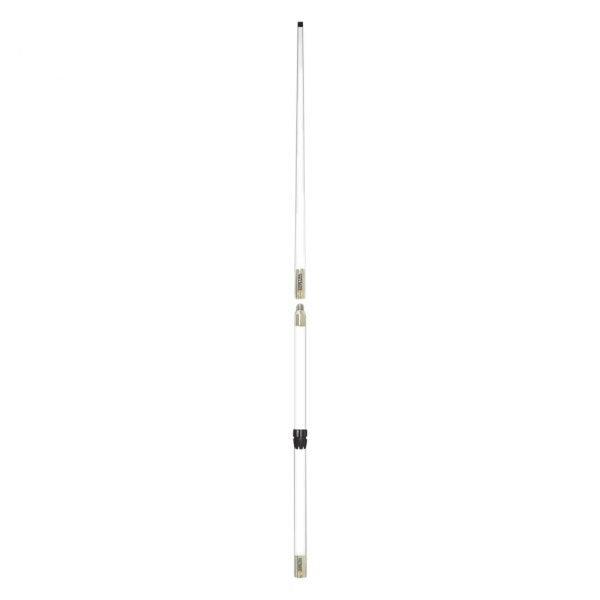

Digital Antenna 544-SSW-S 16' White SSB Antenna
Model: 544SSW-S- Powerful brass radiators
- Soldered connections
- Centering foam insulator
- High gloss urethane finish
- 316 stainless steel ferrule
When the range of a VHF radio just won’t do, offshore vessel operators choose Digital Antenna’s high performance 16' Single Side Band antennas for exceptional communication over the entire HF frequency range (must use with a tuner). Heavy duty construction for use in the roughest seas, our SSB antennas are a popular choice for boaters when durability, performance and great looks are prerequisites.
This SSB antenna requires a side support located 3' to 4' from the base of the antenna.
Made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability. UPS shippable.
Specifications| Radiation Pattern | Omni-Directiona |
| VSWR | <1.5:1 = .5 - 30 MHz with Tuner |
| Max Input Power | 1000 watts |
| Exterior Finish | White, UV stable poly-urethane coating |
| Ferrule | 316 Stainless Steel |
| RF Termination | 1/4"- 20 stainless steel stud |
| Wind Rating | 95 mph |
| Wire | Not included |
| Length | 189.5"" |
What's in the Box:
- Top section
- Bottom section
