Blue Sea Systems

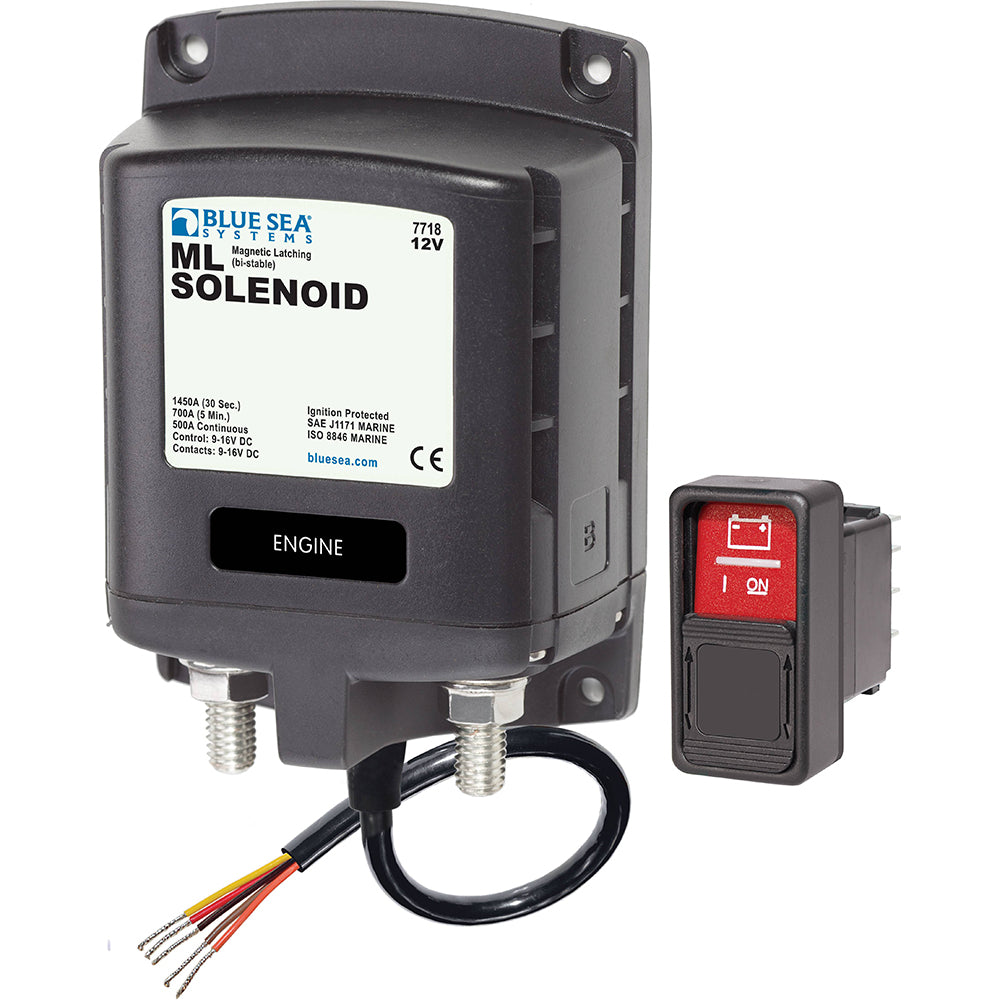

Blue Sea 7718 - ML-Series Solenoid Switch - Stripped Wire - 12V

Blue Sea 7718 - ML-Series Solenoid Switch - Stripped Wire - 12V

Regular price $198.35
Regular price $299.97 Sale price $198.35
Sale Sold out

7718 - ML-Series Solenoid Switch - Stripped Wire - 12V

For applications where sustained control signals are needed to emulate a normally open relay with a lower current draw.

Features:

  • Silver alloy contacts provide high reliability for switching live loads
  • LED output to remotely indicate switch state
  • 3/8"- 16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • One-piece stainless flange nuts for safe and secure connections
  • Label recesses for circuit identification

Technical Specifications:

  • Control Circuit Voltage - 10.1 to 16.5 V DC
  • Control Circuit Connection - Tinned wire
  • Nominal Voltage - 12V DC
  • Coil Function - Auto-releasing
  • Amperage Operating Current - OFF - 8mA and ON 13mA
  • Mechanical Endurance - 100,000 Cycles
  • Terminal Ring Diameter Clearance - 1.18" (30mm)
  • Terminal Stud Length - .875" (22mm)
  • Terminal Stud Size - 3/8" - 16 (M10)

In the Box:

  • 7718 Solenoid
  • Contura Switch w/integrated LED
  • Instruction Manual

*Sold as an Individual


Manufacturer : Blue Sea Systems
Manufacturer Part No : 7718
