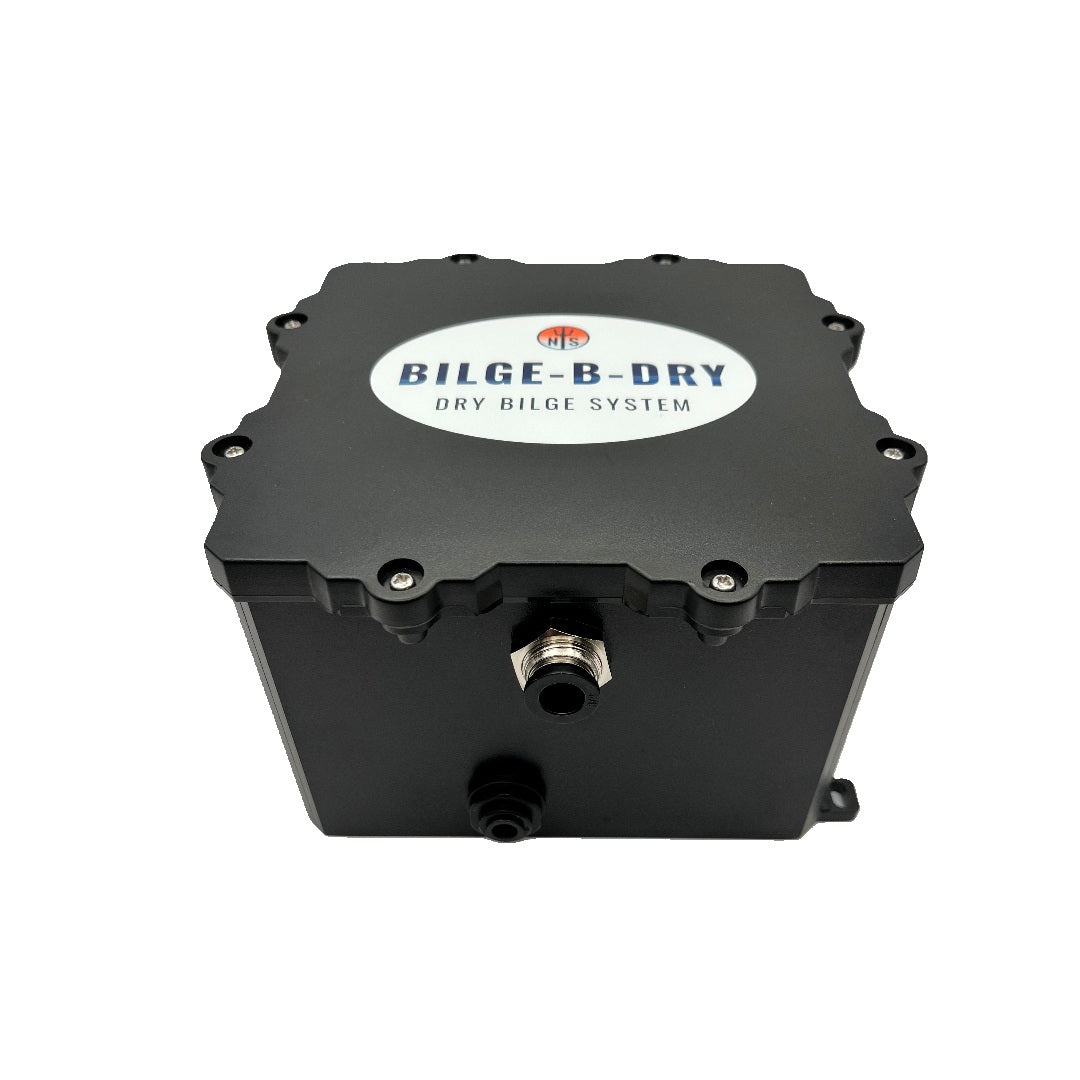

Bilge-B-Dry Single Pump 12v Dry Biilge System

Bilge-B-Dry Single Pump 12v Dry Biilge System

• The world’s ONLY Smart Device enabled Dry Bilge System on the market with customizable operation!


• An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the "step." Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.


• Heavy-duty pump enclosure with improved durability, enhanced pump efficiency and streamlined internal plumbing.


• A choice of four pump configurations in 12vdc or 24vdc for optimal water removal.


• Pump diaphragm design can run dry for extended periods of time without damage.


• A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical).


• Customized pump scheduling with the free Mobile App for Apple and Android devices.


• Quick disconnect wiring harness with optional "trigger" connection to a helm switch, float switch or water sensor.


• An environmentally friendly low-profile bilge water pickup design with a replaceable filter system.


• Configured to automatically cycle for 2 minutes every 6 hours if you decline Smart Device connectivity.

BILGE-B-DRY is the world’s only Smart Device enabled Dry Bilge System on the market!

Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water that accumulates in your bilge. With BILGE-B-DRY, you will finally be able to eliminate cabin odors, reduce mold or corrosion and protect your electrical wiring by removing every drop of water from your bilge. Your cabin will be odor-free, and your bilge will be the driest and cleanest at the marina!

Max current
0.35 amps (12 vdc)

Idle Current
0.05 amps (12 vdc)

Pump

Maximum flow
0.25 GPM

Pump head
10 feet

Pump suction
5 (vertical) feet

Diaphragm design
Able to run dry for extended periods without damage

Life expectancy
1000+ hours

Control board

Wireless Connectivity
Yes

Life expectancy
100,000 cycles

Wi-Fi & RF Grant
FCC Rule Part 15C

Dimensions (in)

Enclosure
4.1 H x 6.8 W x 7 L

Rectangular Pickup
0.98 H x 2.4 W x 3.9 L

Weight
1.8 LB (not including tubing, pickup, or accessories)

Input tubing
1/4" Outer Diameter

Output tubing
3/8" Outer Diameter

Input Voltage
12 vdc (8 — 14 vdc)

What's in the Box:

• One motor/diaphragm pump


• 10 feet of input tubing (diameter (PVC or PU) - ¼" OD)


• 6 feet of output tubing (diameter (PVC or PU)-3/8" OD)
