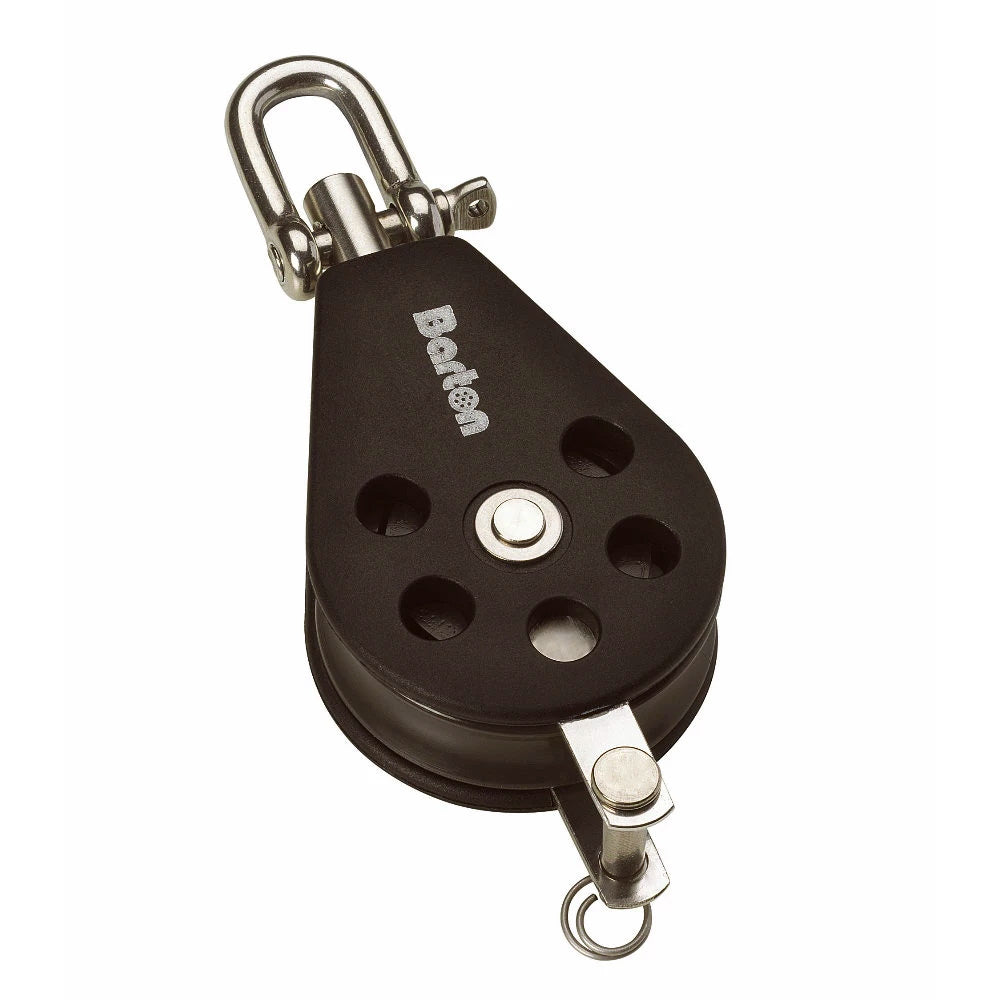

• Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel & Becket
1 1

Barton Marine

Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel & Becket

Barton Size 2 35mm Plain Bearing Pulley Block Single Swivel & Becket

$27.34
$30.37 $27.34
Sale Sold out
FREE Shipping Available in the Continental U.S. Outside the Continental U.S. or Canada? Contact us to explore shipping options.

Order and earn 135 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

Size 2 35mm Plain Bearing Pulley Block Single Swivel Becket

The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8) sheave. This block range size provides high performance and load values in a variety of assemblies configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.

Suitable for up to 8mm (5/16) rope.

Specifications:


  • Weight: 60 g

  • Dimensions: 93 38 24 mm

  • Size: 2 (35MM)

  • Block Type: Swivel + Becket

  • No. of Sheaves: Single

  • Bearing Type: Plain

  • Sheave Size: 35mm x 11mm (1 3/8 x 15/32)

  • Max rope diameter: 8mm (5/16)

  • SWL: 370kg (815lbs)

  • Break load: 740kg (1630lbs)

  • Max rolling load (ball bearing blocks): 260kg (573lbs)
