• Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket
1 1

Barton Marine

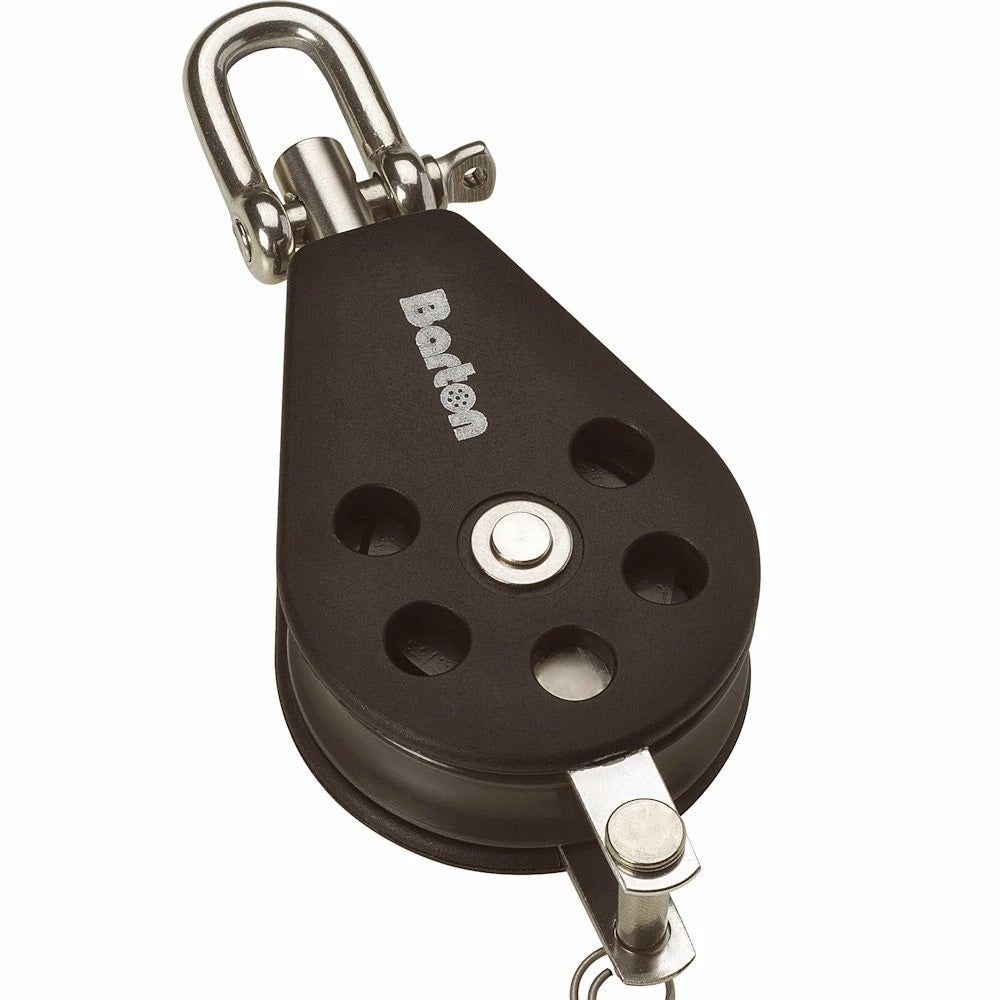

Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket

Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket

$25.13
$27.92 $25.13
Sale Sold out
FREE Shipping Available in the Continental U.S. & Puerto Rico Outside the Continental U.S., Puerto Rico, or Canada? Contact us to explore shipping options.

Order and earn 125 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

Size 1 30mm Plain Bearing Pulley Block Single Swivel Becket

The Size 1 Plain Bearing Blocks have a 30mm (1 3/16) sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.

Suitable for up to 8mm (5/16) rope.

Specifications:


  • Weight: 51 g

  • Dimensions: 85 32 25 mm

  • Size: 1 (30MM)

  • Block Type: Swivel + Becket

  • No. of Sheaves: Single

  • Bearing Type: Plain

  • Sheave Size: 30mm x 12mm (1 3/16 x 15/32)

  • Max rope diameter: 8mm (5/16)

  • SWL: 355kg (782lbs)

  • Break load: 710kg (1565lbs)

  • Max rolling load (ball bearing blocks): 245kg (540lbs)

View full details
