Airmar Ss60-20-8g 50/200khz 20d Tilted Element With Garmin 8-pin

Airmar Ss60-20-8g 50/200khz 20d Tilted Element With Garmin 8-pin

Regular price $429.99
Regular price Sale price $429.99
Sale Sold out

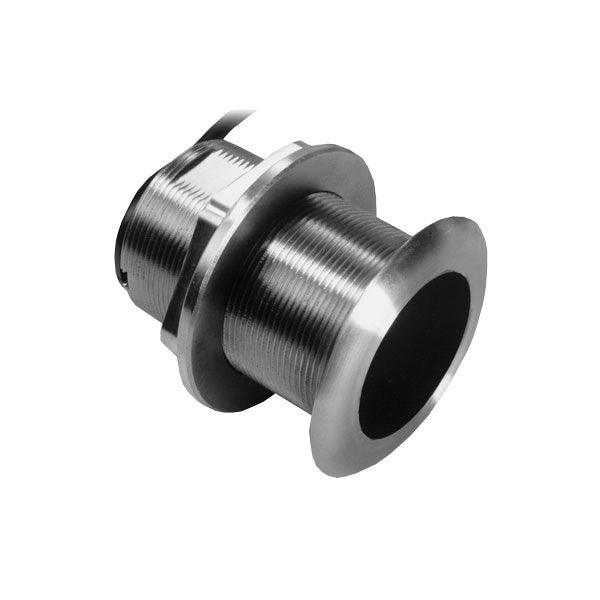

Sirmar SS60 Stainless Steel Thru Hull with 20deg Tilted Element 50/200Khz 8-Pin Garmin Plug

Model: SS60-20-8G
  • Engineered for center-console and trailered boats
  • Low-profile protrusion below the hull
  • No affect on your boats running performance
  • Arrow on cap points toward keel when installed
  • Built-in temperature sensor
  • Boat Size: Up to 8 m (25’)
  • Stainless steel transducer housing
  • Fixed 20° tilted version for 16° to 24° hull deadrise

The SS60 is the stainless-steel version of Airmar's popular, B60, Tilted Element™ transducer. This product provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in deadrise compensation. The resulting vertical beam returns crisp echoes for more-accurate depth readings. For hulls with a minimal deadrise angle, it is also available without tilt. The nearly-flush housing minimizes drag with only 5 mm (3/16"") extending outside of the hull. The SS60 is currently being used by the US Coast Guard.

Beam Width 45/12
Frequency 50/200
