Airmar

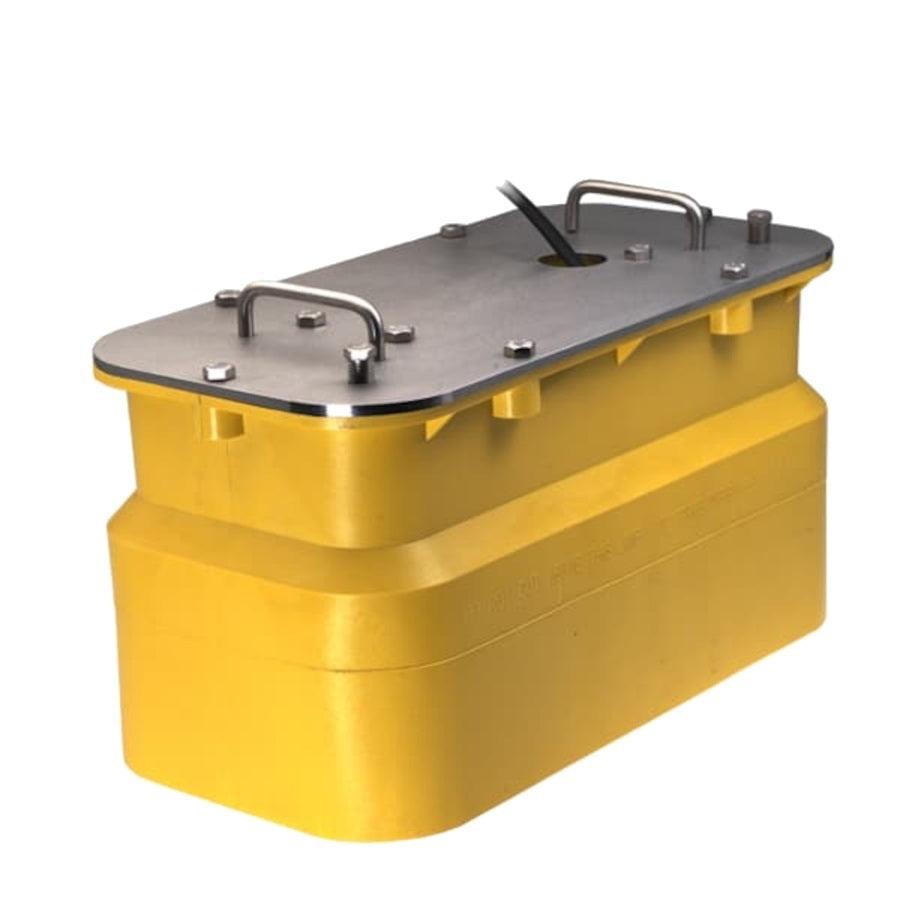

Airmar R599c-lh In Hull 3kw Low/high Chirp No Connector

Airmar R599c-lh In Hull 3kw Low/high Chirp No Connector

Regular price $4,896.67
Regular price Sale price $4,896.67
Sale Sold out

Airmar R599 Low-High Chirp, 3kW, No Connector, Depth

Model: R599C-LH
  • Depth only
  • 2 to 3 kW for superior deep-water performance
  • Low frequency: 28 to 60 kHz
  • 23° to 9° port-starboard beamwidth
  • 11° to 5° fore-aft beamwidth
  • Maximum depth of 3,048 m (10,000')
  • High frequency: 130 to 210 kHz
  • 8° to 4° beamwidth
  • Maximum depth of 457 m (1,500')
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Urethane transducer housing with plastic mounting tank
  • Exclusive Xducer ID® technology

The R599LH is the go-to transducer for today’s top captains who want the maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse shows extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R599LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.

The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.

Specifications
Cable-Length 15 m (49')
Connector Bare Wire
Cross Reference A80212
Deadrise Range 0° to 22°
Display Connector 0
Frequency Band Low-High
Housing Material Urethane
Hull Material Solid fiberglass only
Low Frequency 28-60 kHz
Low Frequency Beamwidth 23°-9°
Max Deadrise Up to 22° (short side), up to 12° (long side)
Max Deadrise Angle 22°
Max Depth Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
Max Vessel LOA 12 m (40') and above
High Frequency 130-210 kHz
High Frequency Beamwidth 8°-4°
Mounting Style In-Hull
Power Rating 2-3 kW
Single or Dual Frequency CHIRP-Ready Dual-Band
Tilted Element No

What's in the Box:
  • R599 Transducer with 15m cable
  • Tank
  • Gasket
  • Plate
  • Hardware
