Airmar

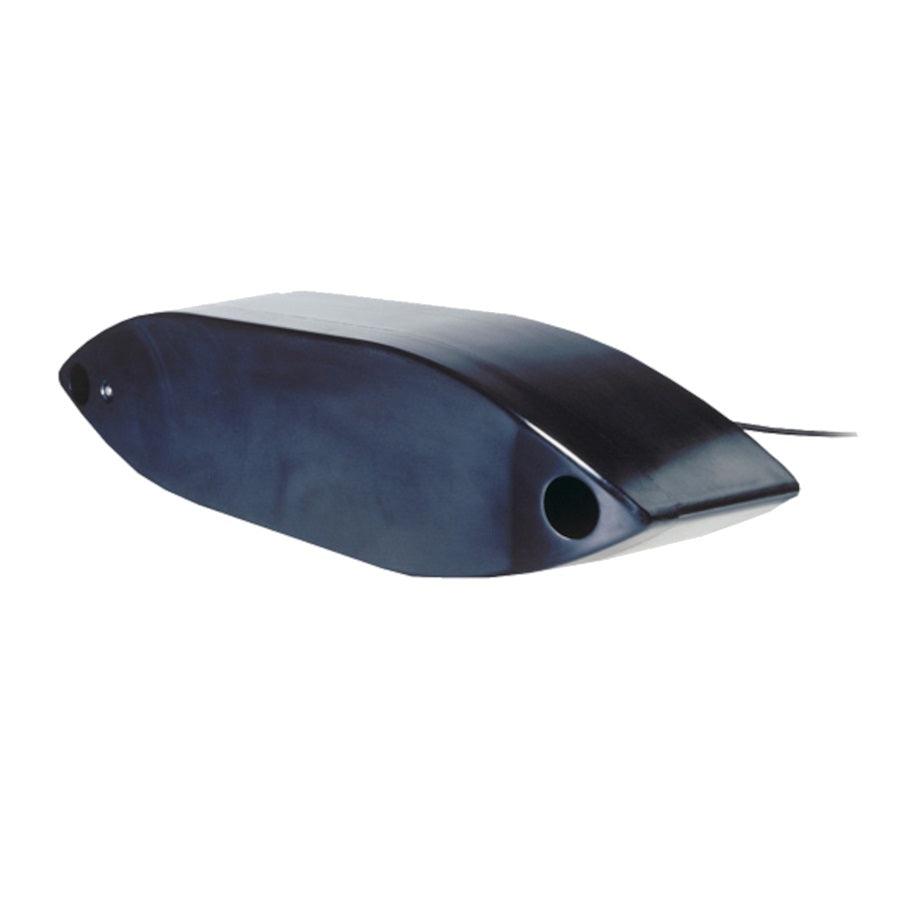

Airmar R509c-lh Low/high Chirp 3kw Thru-hull Mount Depth/temp No Connector

Airmar R509c-lh Low/high Chirp 3kw Thru-hull Mount Depth/temp No Connector

Regular price $4,435.07
Regular price Sale price $4,435.07
Sale Sold out

Airmar R509 Low-High Chirp, 3kW, w/FB, No Connector, DT

Model: R509C-LH
  • Depth and fast-response water-temperature sensing
  • 2 to 3 kW of power for exceptional deep-water performance
  • Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000')
  • High frequency: 130 to 210 kHz, 8° to 4° beamwidth, Maximum depth of 457 m (1500')
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Urethane housing with fairing for optimal performance
  • Patented Xducer ID® technology

The R509LH is the go-to transducer for today’s top captains who want maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R509LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.

Specifications
Acoustic Window Epoxy/urethane
Cable-Length 15 m (49')
Connector Bare Wire
Deadrise Range Up to 25° with fairing
Frequency Low-High
Low Frequency 28-60 kHz
Low Frequency Beamwidth 11°x23°-5°x9°
High Frequency 130-210 kHz
High Frequency Beamwidth 8°-4°
Housing Material Urethane
Max Deadrise Up to 22°
