Airmar

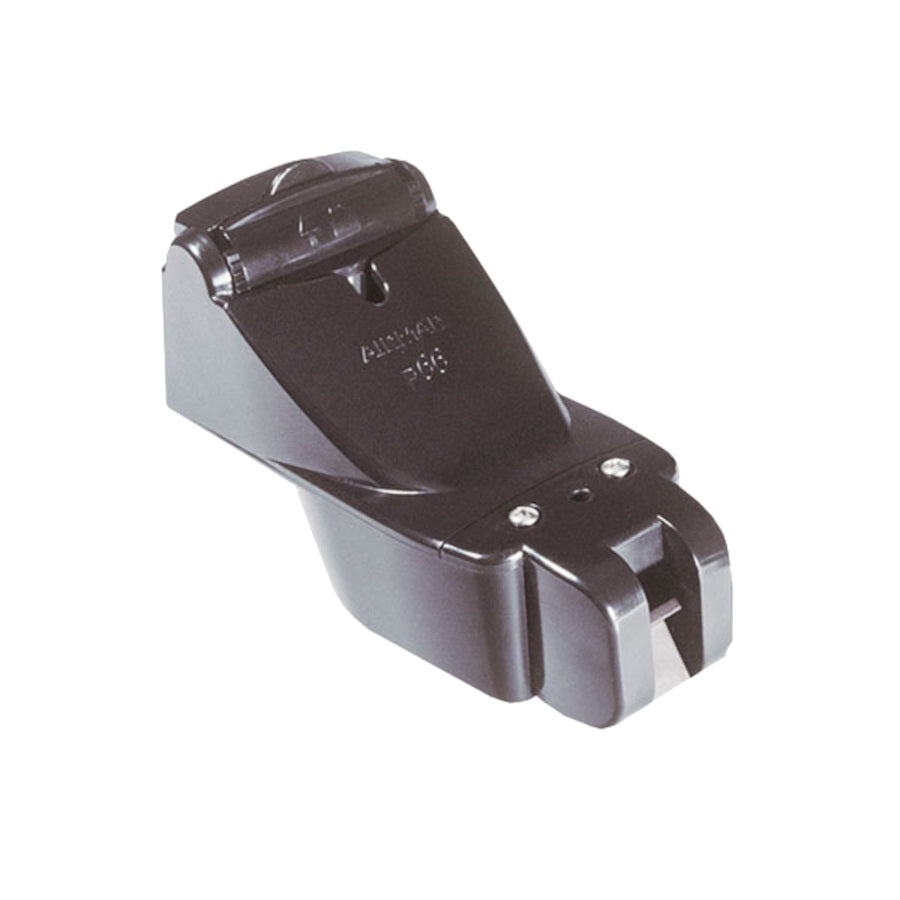

Airmar P66 50/200khz 600w Depth Speed And Temperature With Furuno 10-pin

Airmar P66 50/200khz 600w Depth Speed And Temperature With Furuno 10-pin

Regular price $199.00
Regular price $199.00 Sale price $199.00
Sale Sold out
FREE Shipping Available in the Continental U.S. Outside the Continental U.S. or Canada? Contact us to explore shipping options.

Order and earn 995 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

Furuno P66-10F 50/200kHz Depth Speed and Temperature Transom Mount Transducer with Furuno 10-Pin Connector

Model: P66-10F
  • Depth, speed, and fast-response water-temperature sensing
  • 600 W of power
  • 50 kHz with a 45° beamwidth for depth performance to 353 m (1200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Recessed water-flow channel protects paddlewheel from obstructions
  • Plastic release bracket protects sensor from frontal impact
  • Sensor can be removed from bracket without tools for easy service or storage
  • Chemical and impact-resistant plastic housing

The P66S TRIDUCER® Multisensor combines depth, speed, and temperature functions in one housing. And it features our 50/200 kHz, dual-frequency, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for accurate high-speed readings and clear display images. It is Airmar’s best TRIDUCER transom mount for boats up to 8 m (25') long.

Specifications
Acoustic Window Layered plastic urethane (LPU)
Cable-Length 10 m (33')
Connector Furuno 10-Pin
Conventional Beam 45°/12°
Frequency Band 50/200 kHz
Max Depth Low frequency- 366 m (1200'), High frequency- 206 m (700')
Mounting Style Transom
Power Rating 600 W
Functions Depth, Speed, Temperature
