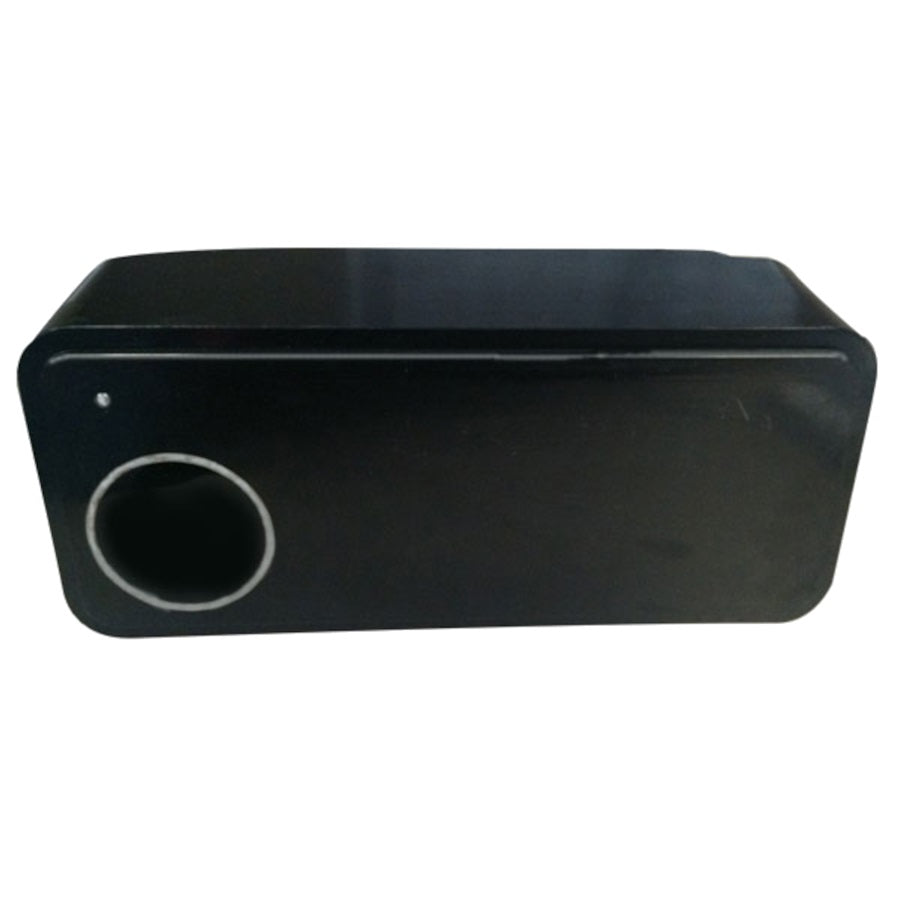

Airmar Cm599c-lhw 3kw Chirp Pocket/keel Mount No Connector

Airmar CM599 Low-High Wide Chirp, 3kW, No Connector, Depth and temp

• CM599 Low-High Wide Chirp, 3kW, No Connector, DT
• 3 kW of power for exceptional deep-water performance
• 3 kW low frequency: 28 to 60 kHz- 23° to 9° port-starboard beamwidth - 11° to 5° fore-aft beamwidth - Maximum depth of 3048 m (10000')
• 1 kW high frequency: 150 to 250 kHz - 25° constant beamwidth - Maximum depth of 152 m (500')
• 132 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Resin housing with curved-edge design for wet-box installation
• Designed for custom mounting in a cavity or welded tank
• Patented Xducer ID® technology

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready CM599LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat is essential down to 152 m (500'). The low-frequency band is rated to 3 kW and produces amazing deep-water performance to 3048 m (10000'). Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.
