Airmar B785c Bronze Transducer Medium Chirp With Raymarine 11-pin

Airmar B785c Bronze Transducer Medium Chirp With Raymarine 11-pin

Regular price $1,072.00
Regular price Sale price $1,072.00
Sale Sold out

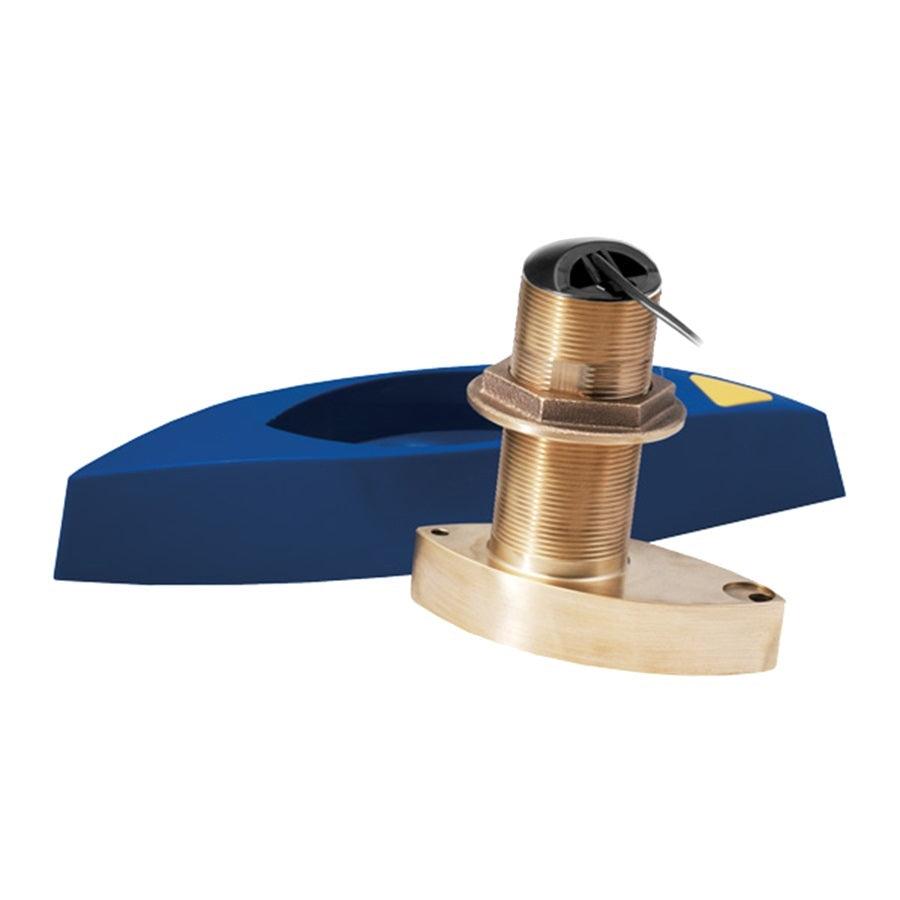

Airmar B785C Triducer Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

Model: B785C-M-11R
  • Depth & fast-responDepth and fast-response water-temperature sensing
  • 600 W of power
  • Medium frequency: 80 to 130 kHz
  • 24° to 16° beamwidth
  • Maximum depth of 274 m (900')
  • 50 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
  • Recommended for use on planing or displacement hull
  • Bronze housing with High-performance Fairing for optimal performance at higher speeds
  • Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Cable-Length 9 m (30ft)
Acoustic Window Urethane
Connector Airmar 12-Pin (MMC)
Deadrise Range Up to 24° with fairing
Display Connector Raymarine 11-Pin
Frequency Band Medium 80-130 kHz
Hole Size 51 mm (2in)
Housing Material Bronze
Max Depth 274 m (900ft)
Medium Frequency Beamwidth 24°-16°
Power Rating 600 W
Single or Dual Frequency CHIRP-Ready Single-Band
Usable Shaft Length 121 mm (4.75"")

What's in the Box:
  • B785C-M-MM Triducer
  • Fairing Block
  • Anti-rotation Bolt
  • MMC-11RHM cable
