• Airmar B785c Bronze Transducer Medium Chirp With Furuno 12-pin - Boat Gear USA
1 1

Airmar

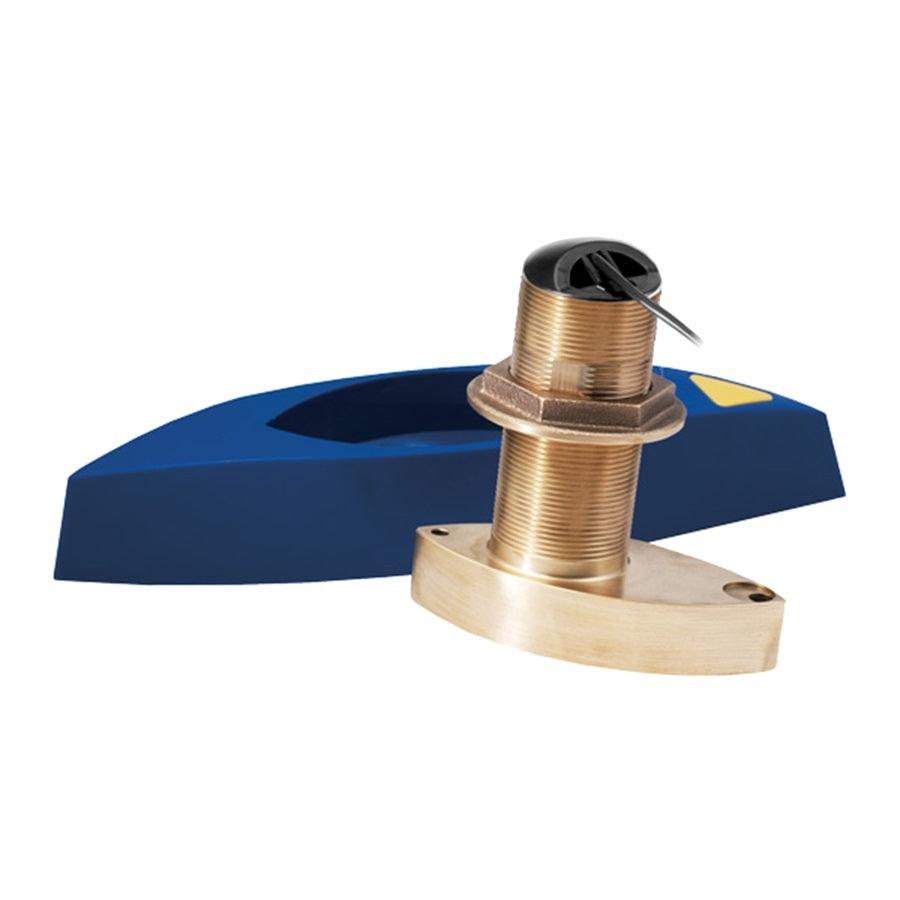

Airmar B785c Bronze Transducer Medium Chirp With Furuno 12-pin

Airmar B785c Bronze Transducer Medium Chirp With Furuno 12-pin

$1,099.00
$1,099.00 $1,099.00
Sale Sold out
FREE SHIPPING AVAILABLE WITHIN THE CONTINENTAL U.S. Outside the U.S. and Canada? Contact us to explore shipping options.

Order and earn 5495 reward points!

Members of our rewards program earn points on every purchase. Not a member? Sign up now

EVERY ORDER INCLUDES 30-DAY RETURNS, 30-DAY PRICE-MATCH PROTECTION, FREE LIFETIME CUSTOMER SUPPORT.

Airmar B785C Triducer Medium CHIRP with Furuno 12-Pin Mix-N-Match Cable

Model: B785C-M-12F
  • Depth & fast-responDepth and fast-response water-temperature sensing
  • 600 W of power
  • Medium frequency: 80 to 130 kHz
  • 24° to 16° beamwidth
  • Maximum depth of 274 m (900')
  • 50 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
  • Recommended for use on planing or displacement hull
  • Bronze housing with High-performance Fairing for optimal performance at higher speeds
  • Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications
Cable-Length 9 m (30ft)
Acoustic Window Urethane
Connector Airmar 12-Pin (MMC)
Deadrise Range Up to 24° with fairing
Display Connector Furuno 12-Pin
Frequency Band Medium 80-130 kHz
Hole Size 51 mm (2in)
Housing Material Bronze
Max Depth 274 m (900ft)
Medium Frequency Beamwidth 24°-16°
Power Rating 600 W
Single or Dual Frequency CHIRP-Ready Single-Band
Usable Shaft Length 121 mm (4.75"")

What's in the Box:
  • B785C-M-MM Triducer
  • Fairing Block
  • Anti-rotation Bolt
  • MMC-12F cable
