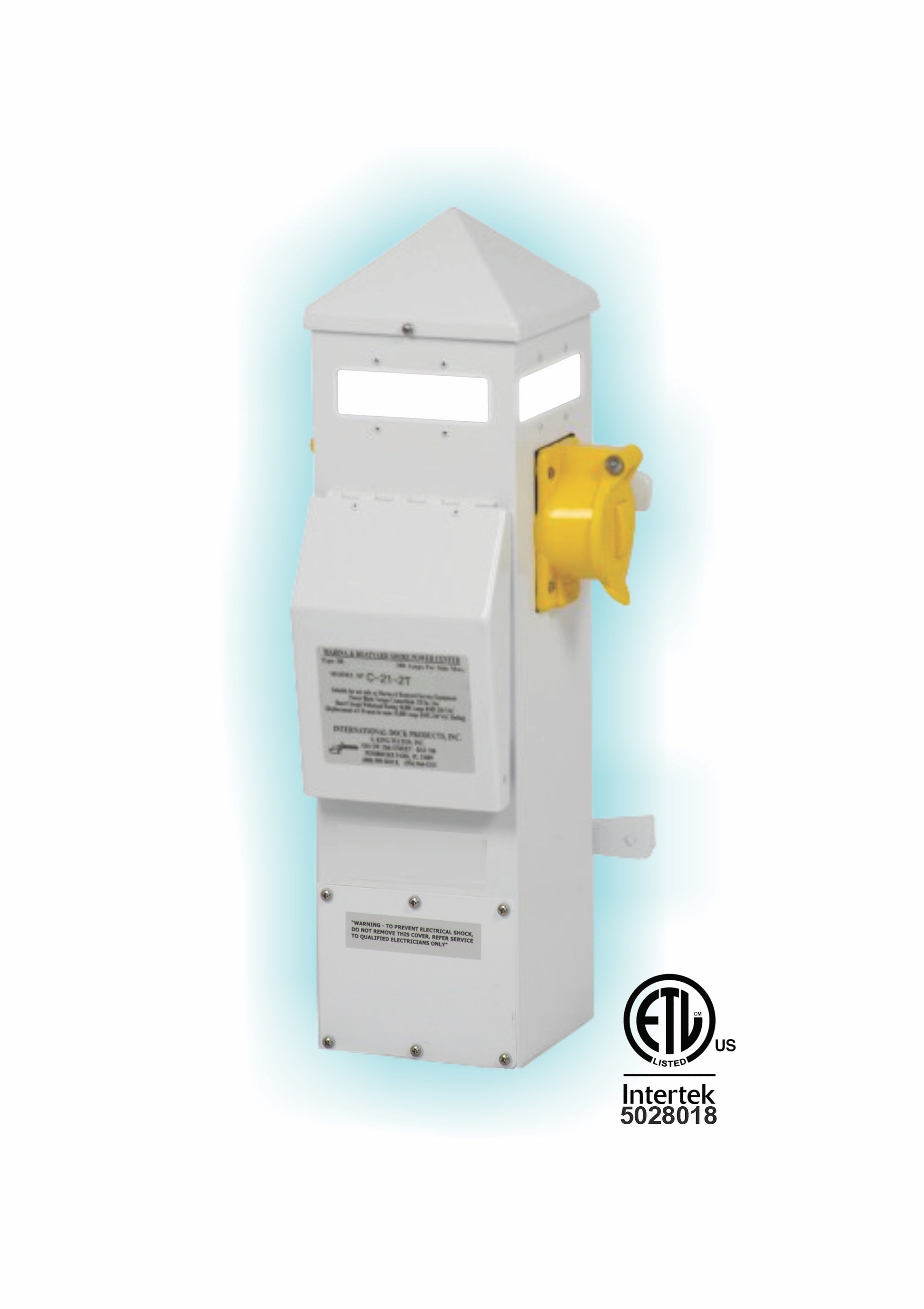

21 INCH PILING MOUNT MARINE POWER PEDESTAL - 30/20/LED&P/DIRECT

PART NUMBER: SPC-21-2T-BG1

DESCRIPTION:

The 21” pedestal SPC-21-2T is designed to be mounted on a vertical surface (round or square dock piling or wall.  The SPC-21-2T comes with two outlets. (1) 30 AMP and (1) 20 AMP mounted at 90 degrees to vertical plus LED light with photocell.

EQUIPPED WITH:

(1) 30 AMP 125V twistlock receptacles

(1) 20 AMP GFCI duplex receptacles

(1) LED light and photocell

FEATURES:

All aluminum construction that has a powder-coated white finish inside and out

      (no plastic/fiberglass)

All hardware is stainless steel

Each receptacle is protected by an individual circuit breaker

All receptacles are mounted at a 45 degree down angle and are back-lit for ease of use

Custom configurations and colors also available, call for quote.

NOTE: All our standard Pedestals are equipped with SQ D Non-GFI breakers.

If you require GFI (5Ma) or EPD (30Ma) breakers please contact our Sales Team

so they can assist you.

 DIMENSIONS:  6” X 6“ X 21” tall

Box Dimensions 12x12x24

Weight 25lbs
